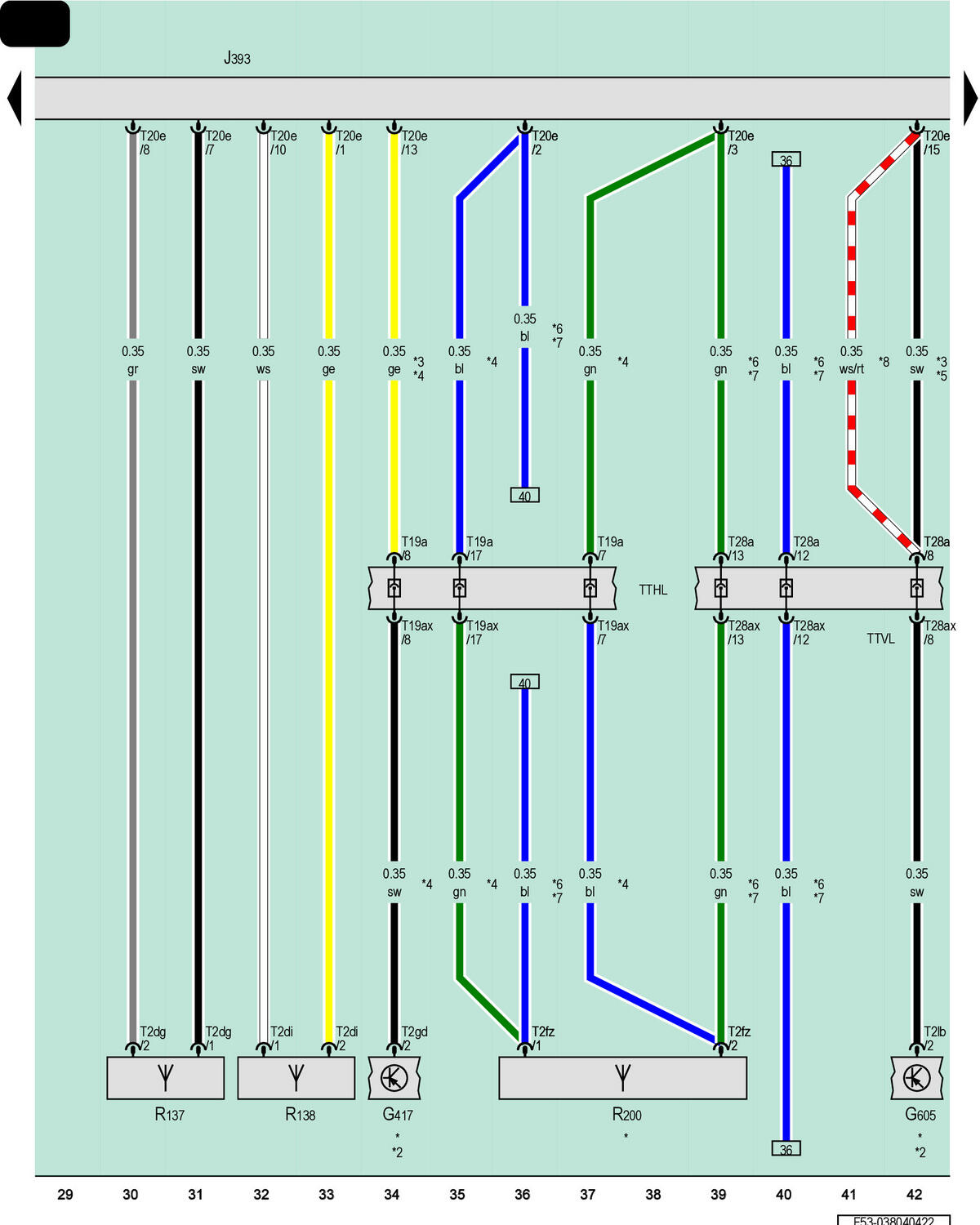

Comfort System Central Control Module, Access/Start System Antenna In Luggage Compartment, Access/Start System Antenna 1 In Vehicle Interior, Left Access/Start Authorization Antenna

Courtesy of AUDI OF AMERICA, LLC

G417

Left Rear Exterior Door Handle Touch Sensor

G605

Left Front Exterior Door Handle Touch Sensor

J393

Comfort System Central Control Module

R137

Access/Start System Antenna in Luggage Compartment

R138

Access/Start System Antenna 1 in Vehicle Interior

R200

Left Access/Start Authorization Antenna

T2dg

2-Pin Connector, Black

T2di

2-Pin Connector, Black

T2fz

2-Pin Connector, Black

T2gd

2-Pin Connector, Black

T2lb

2-Pin Connector, Black

T19a

19-Pin Connector, Black

T19ax

19-Pin Connector, Black

T20e

20-Pin Connector, Black

T28a

28-Pin Connector, Black

T28ax

28-Pin Connector, Black

TTHL

Left Rear Door Coupling Point

TTVL

Left Front Door Coupling Point

*

Optional Equipment

*2

Refer to Applicable Convenience System Wiring Diagram

*3

Diameter Depends on Equipment

*4

Sportback

*5

Omitted as a Running Change

*6

Coupe

*7

For Convertible

*8

Running Change
