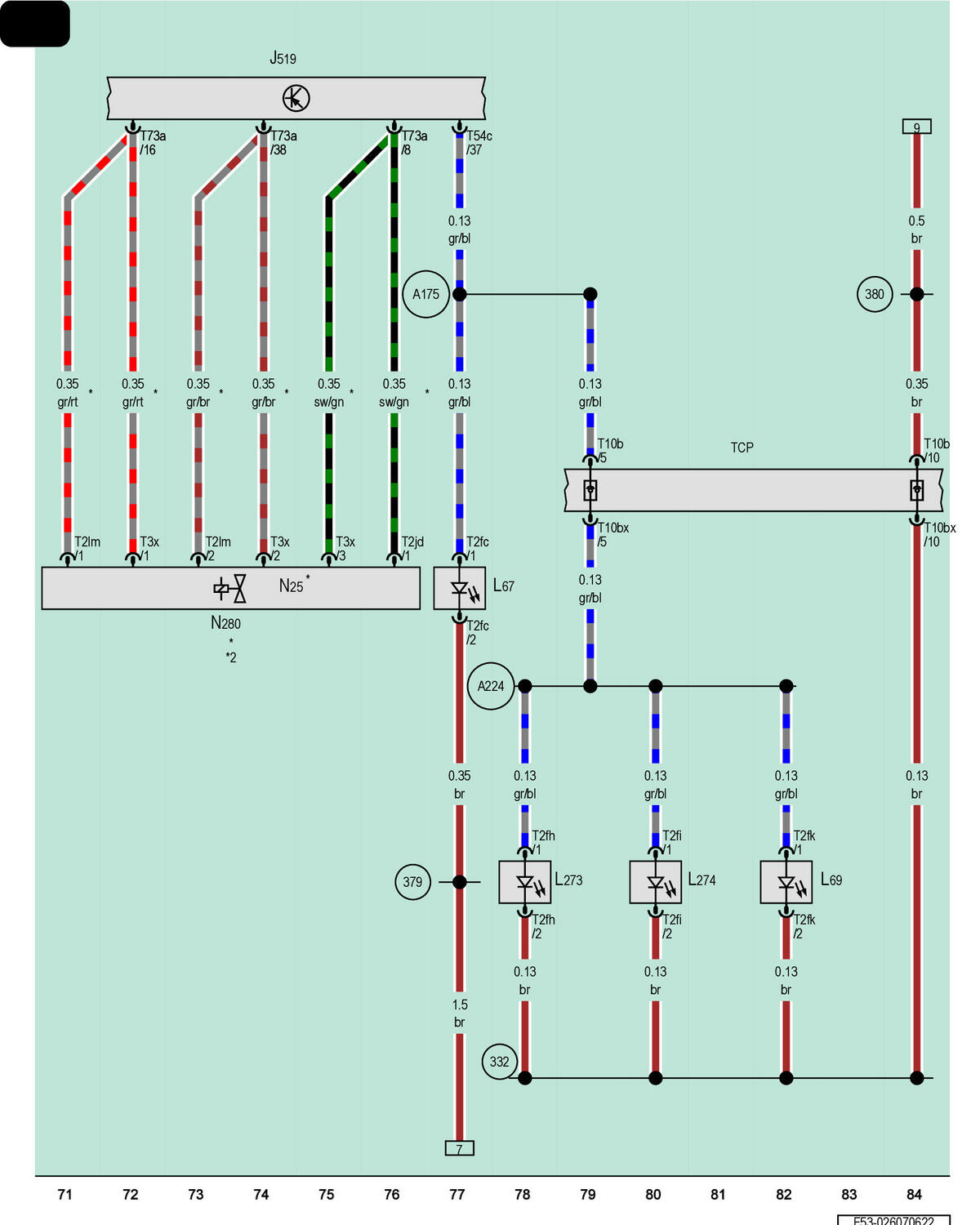

Vehicle Electrical System Control Module, Left Instrument Panel Vent Illumination Bulb, Right Instrument Panel Vent Illumination Bulb, Left Vent Illumination Lamp, Right Vent Illumination Lamp, A/C Clutch, A/C Compressor Regulator Valve
J519
Vehicle Electrical System Control Module
L67
Left Instrument Panel Vent Illumination Bulb
L69
Right Instrument Panel Vent Illumination Bulb
L273
Left Vent Illumination Lamp
L274
Right Vent Illumination Lamp
N25
A/C Clutch
N280
A/C Compressor Regulator Valve
T2fc
2-Pin Connector, Black
T2fh
2-Pin Connector, Black
T2fi
2-Pin Connector, Black
T2fk
2-Pin Connector, Black
T2jd
2-Pin Connector, Brown
T2lm
2-Pin Connector, Black
T3x
3-Pin Connector, Black
T10b
10-Pin Connector, Black
T10bx
10-Pin Connector, Black
T54c
54-Pin Connector, Black
T73a
73-Pin Connector, Black
TCP
Coupling Point on Instrument Panel
332
Ground Connection 4 (in Instrument Panel Wiring Harness)
379
Ground Connection 14 (in Main Wiring Harness)
380
Ground Connection 15 (in Main Wiring Harness)
A175
Connection 58s (in Instrument Panel Wiring Harness)
A224
Positive Connection 2 (58) (in Instrument Panel Wiring Harness)
*
Depending on Equipment
*2
Refer to Applicable Engine Wiring Diagram
