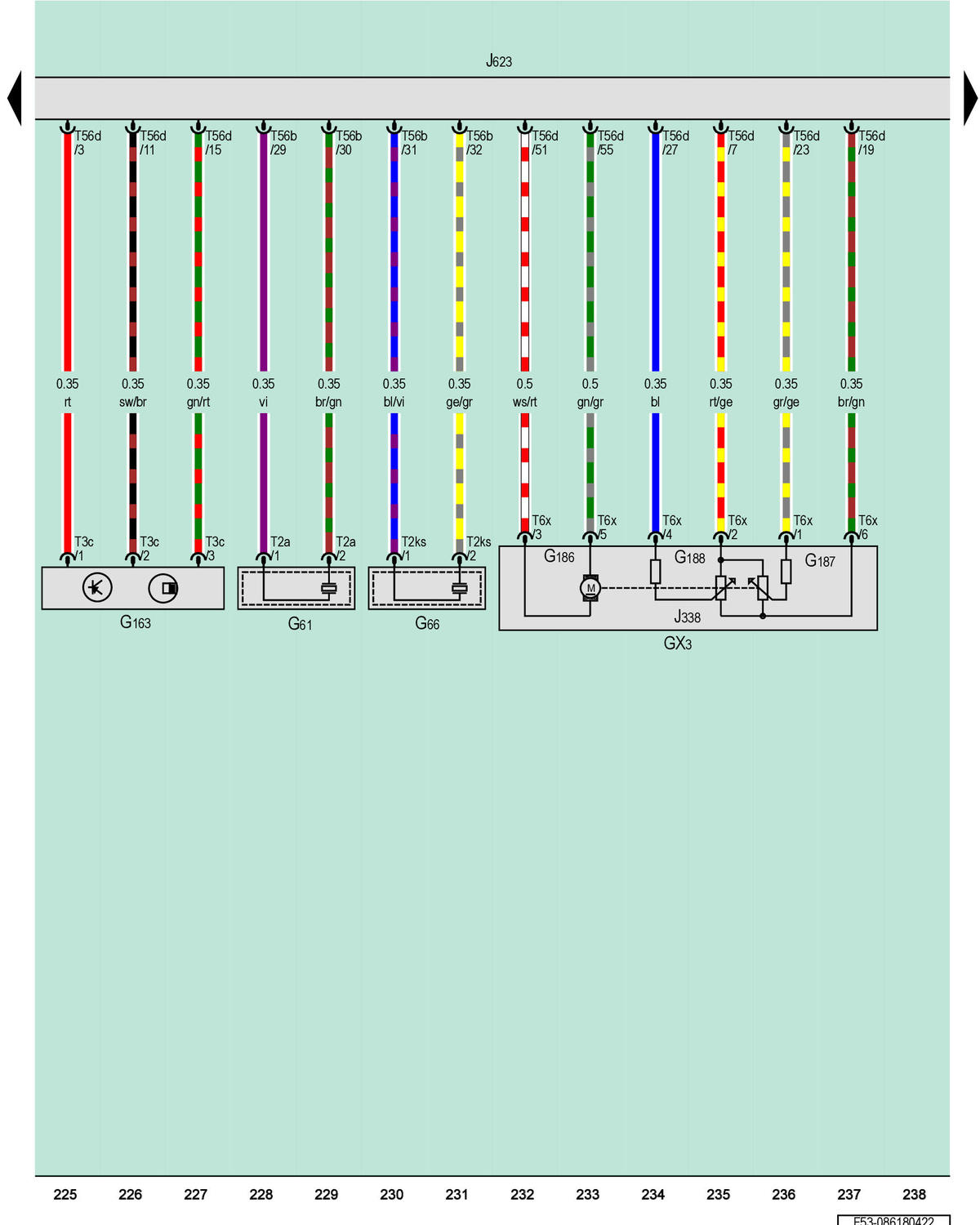

Throttle Valve Control Module, Knock Sensor 1, Knock Sensor 2, Camshaft Position Sensor 2, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

GX3

Throttle Valve Control Module

G61

Knock Sensor 1

G66

Knock Sensor 2

G163

Camshaft Position Sensor 2

G186

EPC Throttle Drive

G187

EPC Throttle Drive Angle Sensor 1

G188

EPC Throttle Drive Angle Sensor 2

J338

Throttle Valve Control Module

J623

Engine/Motor Control Module, In the Engine/Motor Compartment, Left Front

T2a

2-Pin Connector, Black

T2ks

2-Pin Connector, Black

T3c

3-Pin Connector, Black

T6x

6-Pin Connector, Black

T56b

56-Pin Connector, Black, White

T56d

56-Pin Connector, Black, Purple
