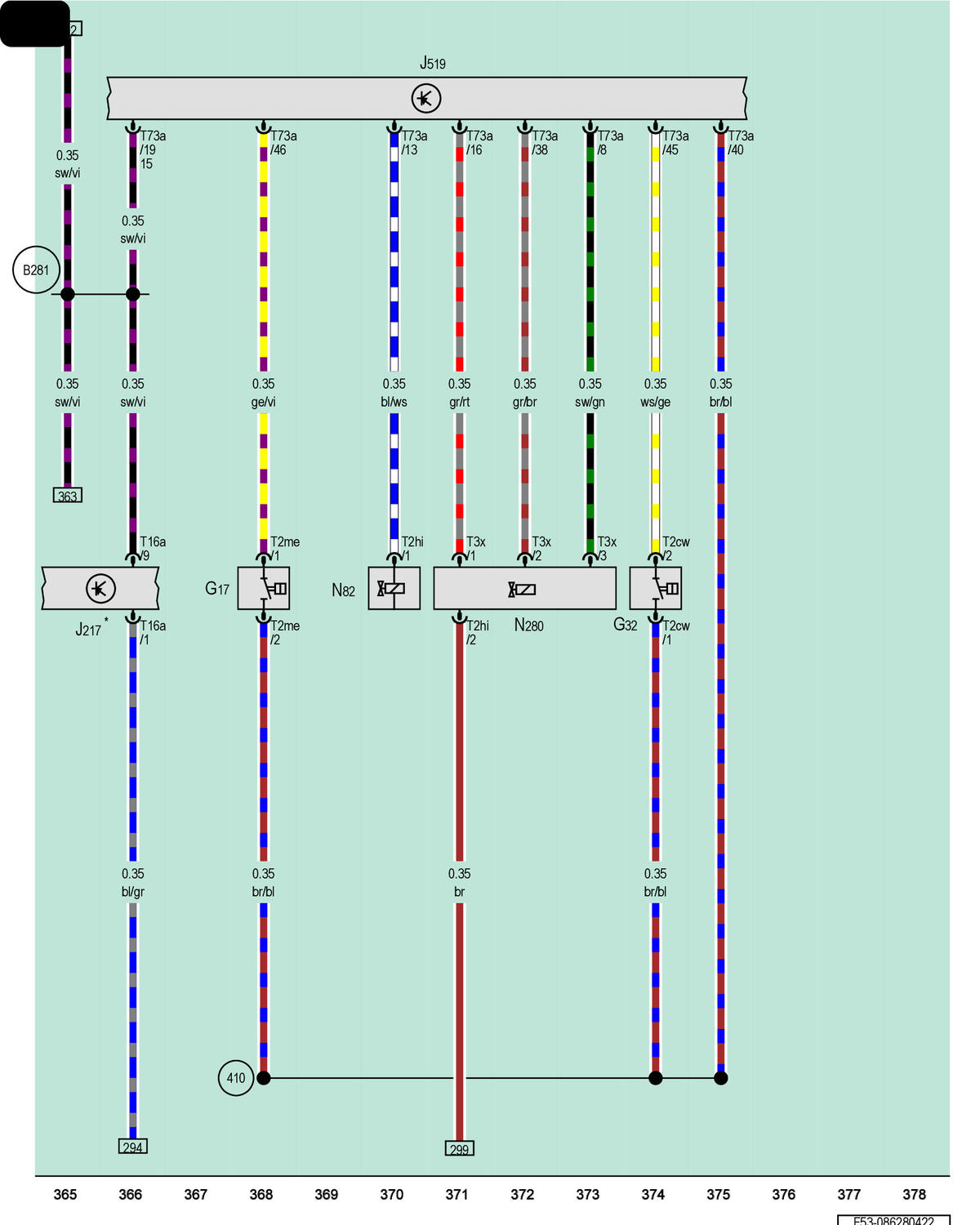

Outside Air Temperature Sensor, Engine Coolant Level Sensor, Transmission Control Module, Vehicle Electrical System Control Module, Coolant Shut-Off Valve, A/C Compressor Regulator Valve
G17
Outside Air Temperature Sensor
G32
Engine Coolant Level Sensor
J217
Transmission Control Module
J519
Vehicle Electrical System Control Module
N82
Coolant Shut-Off Valve
N280
A/C Compressor Regulator Valve
T2cw
2-Pin Connector, Black
T2hi
2-Pin Connector, Black
T2me
2-Pin Connector, Black
T3x
3-Pin Connector, Black
T16a
16-Pin Connector, Black
T73a
73-Pin Connector, Black
410
Sensor Ground Connection 1 (in Main Wiring Harness)
B281
Positive Connection 5 (15a) (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram for Automatic Transmission
