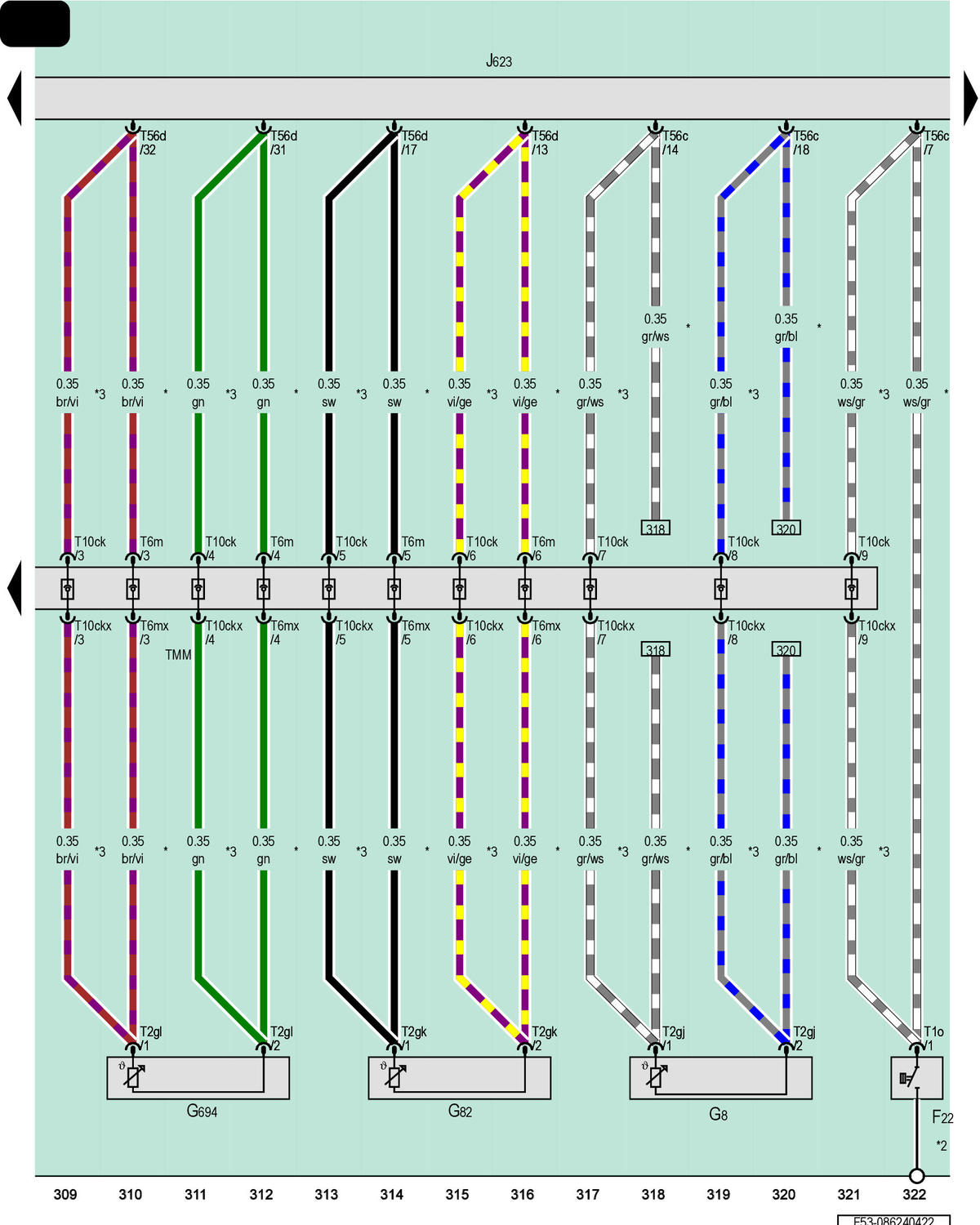

Oil Pressure Switch, Oil Temperature Sensor, Engine Coolant Temperature Sensor On Engine, Engine Temperature Control Sensor, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

F22

Oil Pressure Switch

G8

Oil Temperature Sensor

G82

Engine Coolant Temperature Sensor on Engine

G694

Engine Temperature Control Sensor

J623

Engine/Motor Control Module, In the Engine/Motor Compartment, Left Front

T1o

1-Pin Connector, Black

T2gj

2-Pin Connector, Black

T2gk

2-Pin Connector, Black

T2gl

2-Pin Connector, Black

T6m

6-Pin Connector, Black

T6mx

6-Pin Connector, Black

T10ck

10-Pin Connector, Black

T10ckx

10-Pin Connector, Black

T56c

56-Pin Connector, Black, Blue

T56d

56-Pin Connector, Black, Purple

TMM

Coupling Point in Engine/Motor Compartment, Center

*

Omitted as a Running Change

*2

Ground Supply via the Housing

*3

Running Change
