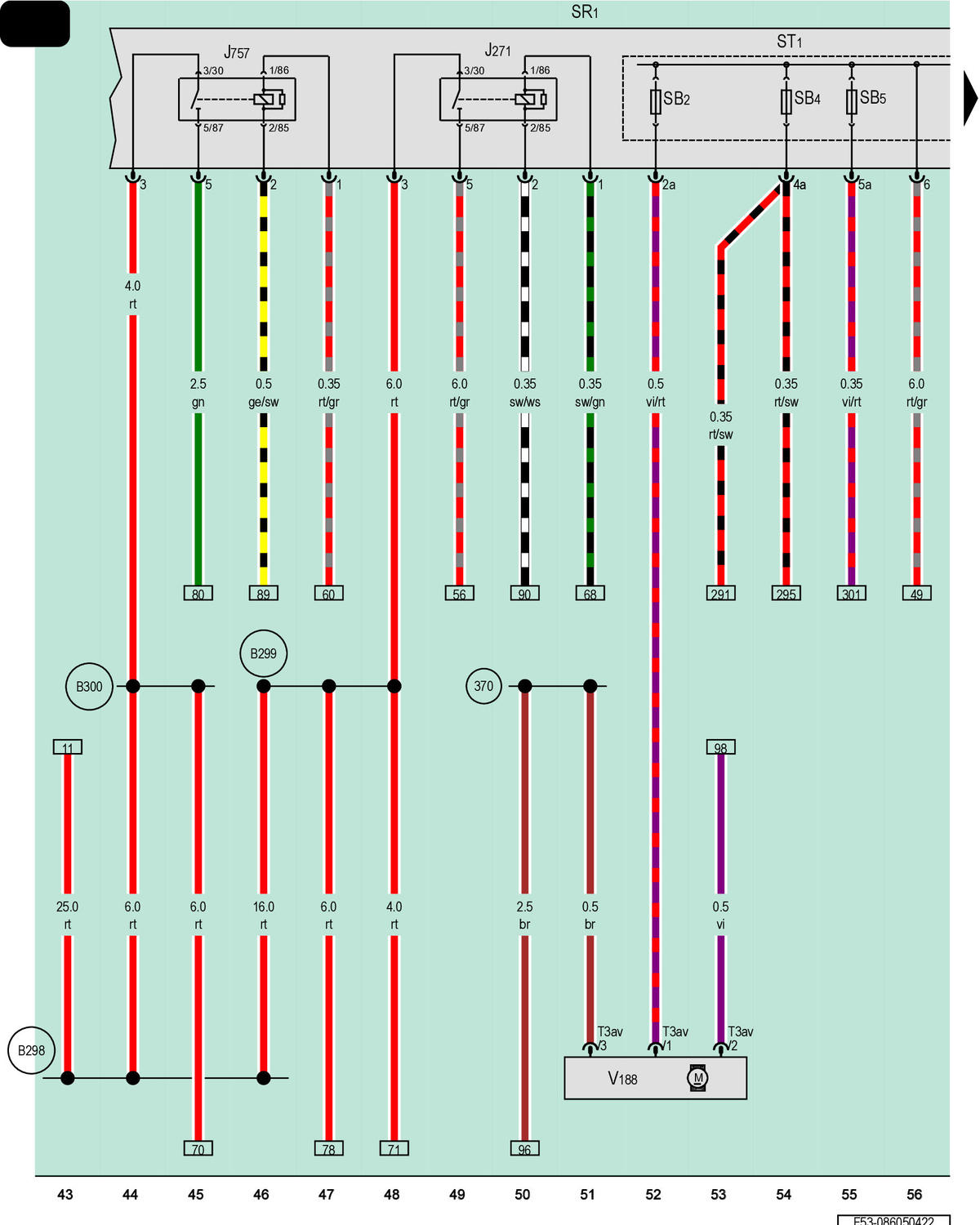

MOTRONIC Engine Control Module Power Supply Relay, Engine Component Power Supply Relay, Relay And Fuse Panel 1, Charge Air Cooling Pump
J271
Motronic Engine Control Module Power Supply Relay, On the Relay Panel, Left A-Pillar, Bottom, Brown
J757
Engine Component Power Supply Relay, On the Relay Panel, Left A-Pillar, Bottom, Red
SR1
Relay and Fuse Panel 1, On the Lower Left A-Pillar
ST1
Fuse Panel 1, Brown
SB2
Fuse 2 (On Fuse Panel B)
SB4
Fuse 4 (On Fuse Panel B)
SB5
Fuse 5 (On Fuse Panel B)
T3av
3-Pin Connector, Black
V188
Charge Air Cooling Pump
370
Ground Connection 5 (in Main Wiring Harness)
B298
Positive Connection 2 (30) (in Main Wiring Harness)
B299
Positive Connection 3 (30) (in Main Wiring Harness)
B300
Positive Connection 4 (30) (in Main Wiring Harness)
