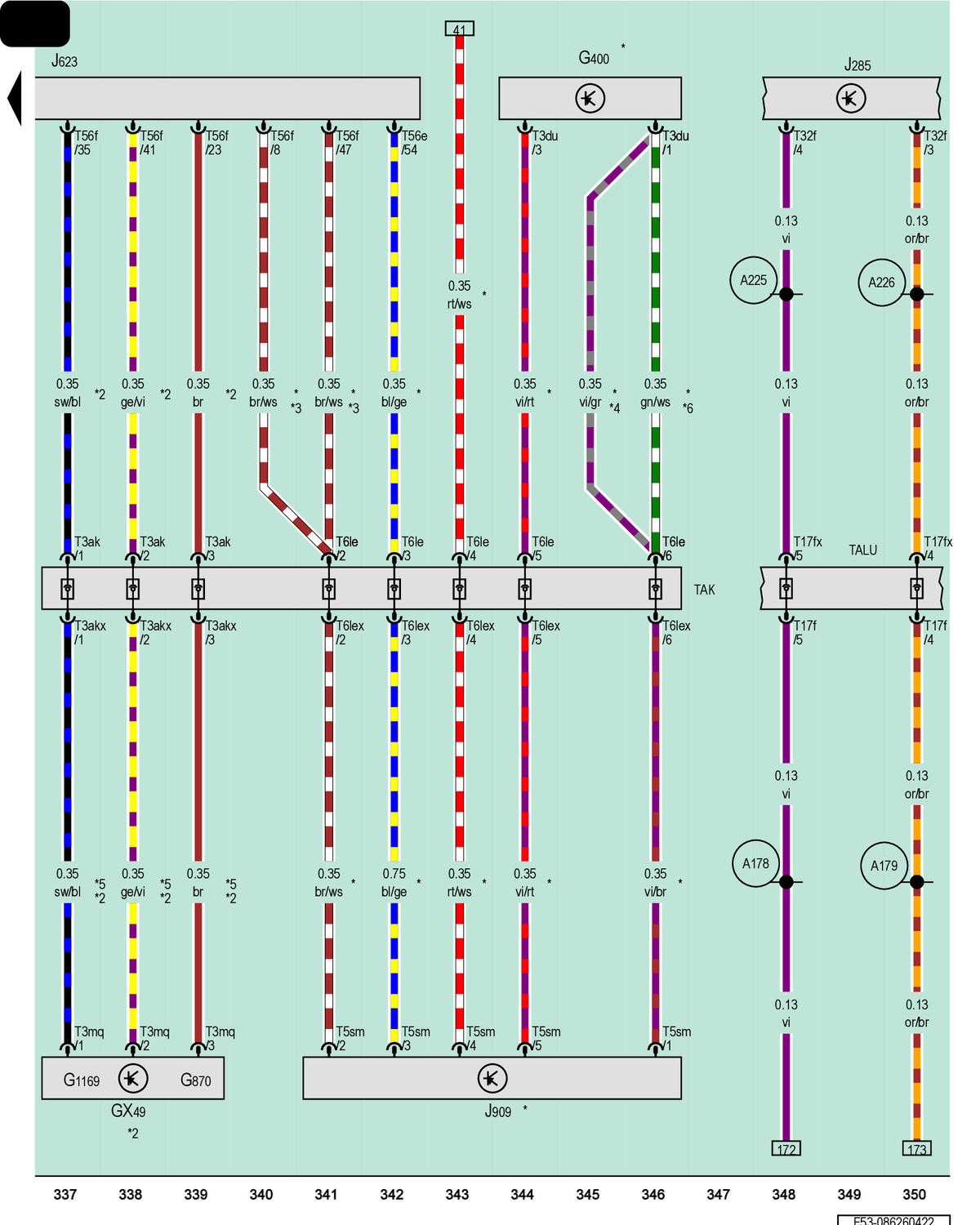

Fuel Tank Pressure Sensor, Instrument Cluster Control Module, Engine/Motor Control Module, Fuel Tank Leak Detection Control Module
GX49
Fuel Tank Temperature and Pressure Sensor
G400
Fuel Tank Pressure Sensor
G870
Fuel Tank Temperature Sensor
G1169
Fuel Tank Pressure Sensor
J285
Instrument Cluster Control Module
J623
Engine/Motor Control Module, In the Engine/Motor Compartment, Left Front
J909
Fuel Tank Leak Detection Control Module
T3ak
3-Pin Connector, Black
T3akx
3-Pin Connector, Black
T3du
3-Pin Connector, Black
T3mq
3-Pin Connector, Black
T5sm
5-Pin Connector, Black
T6le
6-Pin Connector, Green
T6lex
6-Pin Connector, Green
T17f
17-Pin Connector, Red
T17fx
17-Pin Connector, Red
T32f
32-Pin Connector, Gray
T56e
56-Pin Connector, Black, Green
T56f
56-Pin Connector, Black, Black
TAK
Fuel Tank Coupling Point
TALU
Coupling Point on Left A-Pillar, Bottom
A178
Infotainment CAN Bus High Connection (in Instrument Panel Wiring Harness)
A179
Infotainment CAN Bus Low Connection (in Instrument Panel Wiring Harness)
A225
Infotainment CAN Bus High Connection 2 (in Instrument Panel Wiring Harness)
A226
Infotainment CAN Bus Low Connection 2 (in Instrument Panel Wiring Harness)
*
For USA Only
*2
For Vehicles with China Equipment
*3
Depending on Equipment
*4
Omitted as a Running Change
*5
Different Wire Color Possible
*6
Running Change
