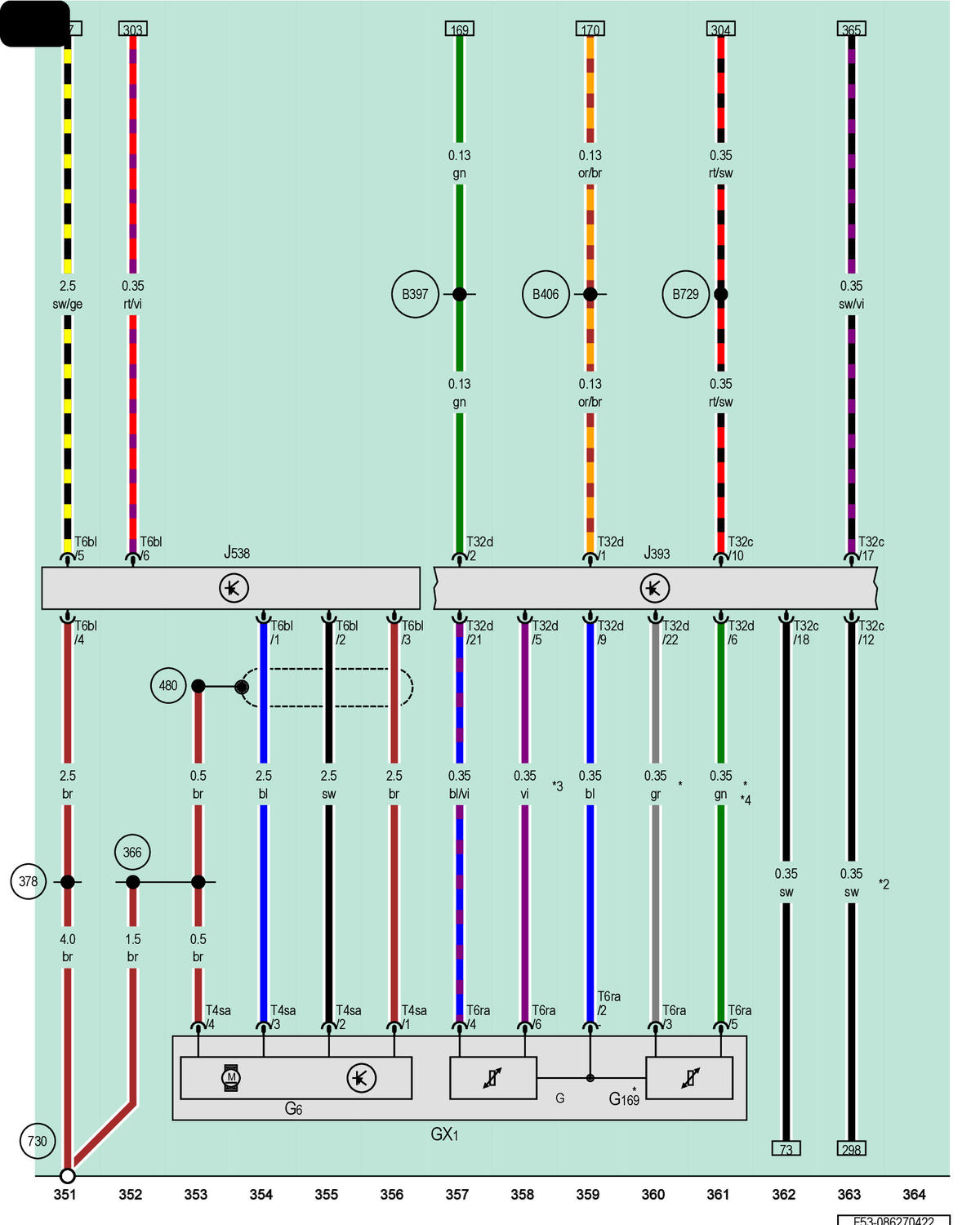

Fuel Delivery Unit, Comfort System Central Control Module, Fuel Pump Control Module

Courtesy of AUDI OF AMERICA, LLC

G

Fuel Level Sensor

GX1

Fuel Delivery Unit

G6

Transfer Fuel Pump

G169

Fuel Level Sensor 2

J393

Comfort System Central Control Module

J538

Fuel Pump Control Module

T4sa

4-Pin Connector, Black

T6bl

6-Pin Connector, Black

T6ra

6-Pin Connector, Black

T32c

32-Pin Connector, Black

T32d

32-Pin Connector, Blue

366

Ground Connection 1 (in Main Wiring Harness)

378

Ground Connection 13 (in Main Wiring Harness)

480

Ground Connection (in Fuel Tank Wiring Harness)

730

Ground Connection 1 on Right Rear Wheel Housing

B397

Comfort System CAN Bus High Connection 1 (in Main Wiring Harness)

B406

Comfort System CAN Bus Low Connection 1 (in Main Wiring Harness)

B729

Connection 50 (in Main Wiring Harness) 1

*

For AWD Vehicles

*2

Diameter Depends on Equipment

*3

Depending on Equipment

*4

Through July 2018
