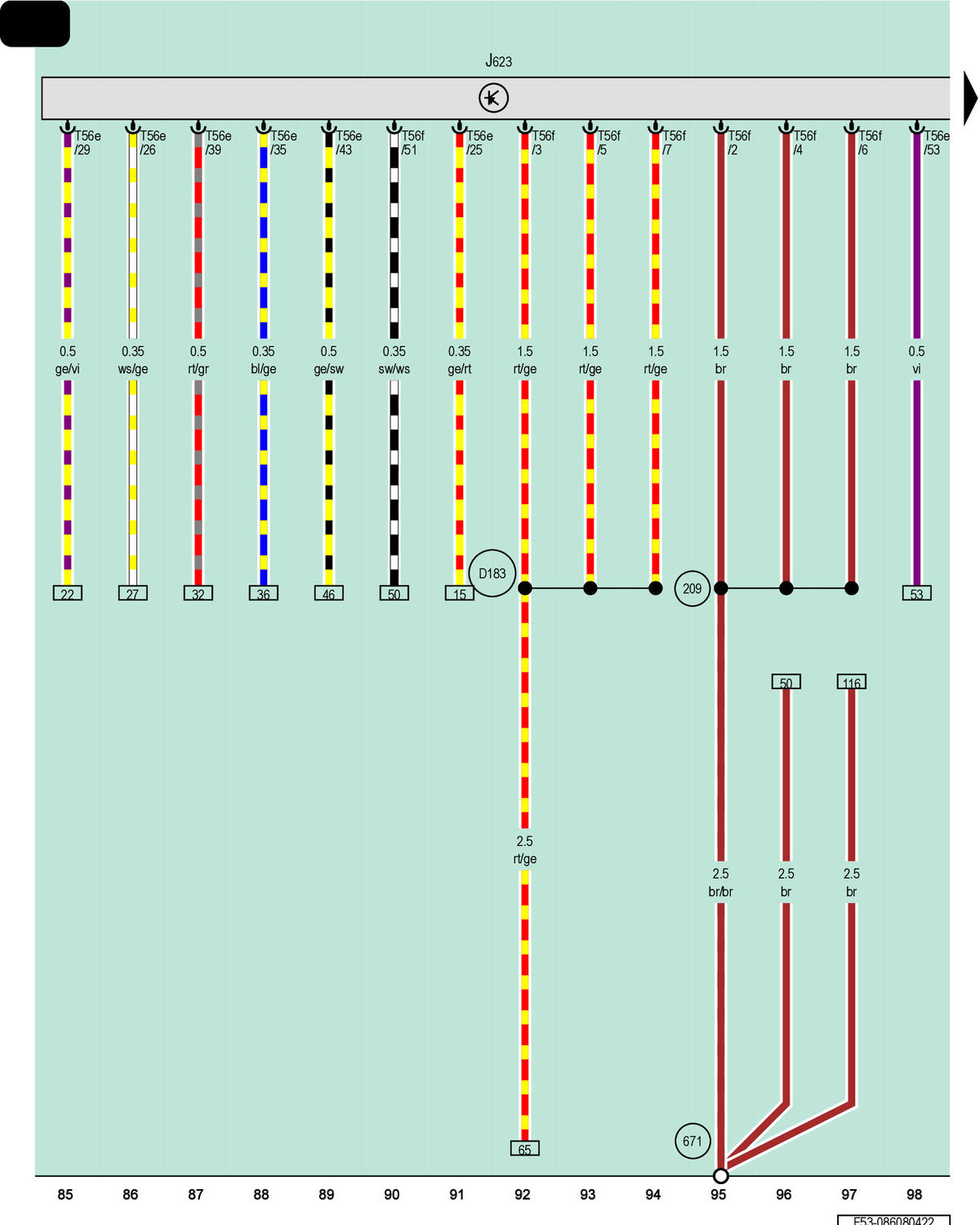

Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

J623

Engine/Motor Control Module, In the Engine/Motor Compartment, Left Front

T56e

56-Pin Connector, Black, Green

T56f

56-Pin Connector, Black, Black

209

Ground Connection 6 (in Engine/Motor Compartment Wiring Harness)

671

Ground Connection 1 on Left Front Longitudinal Member

D183

Connection 4 (87A) (in Engine/Motor Compartment Wiring Harness)
