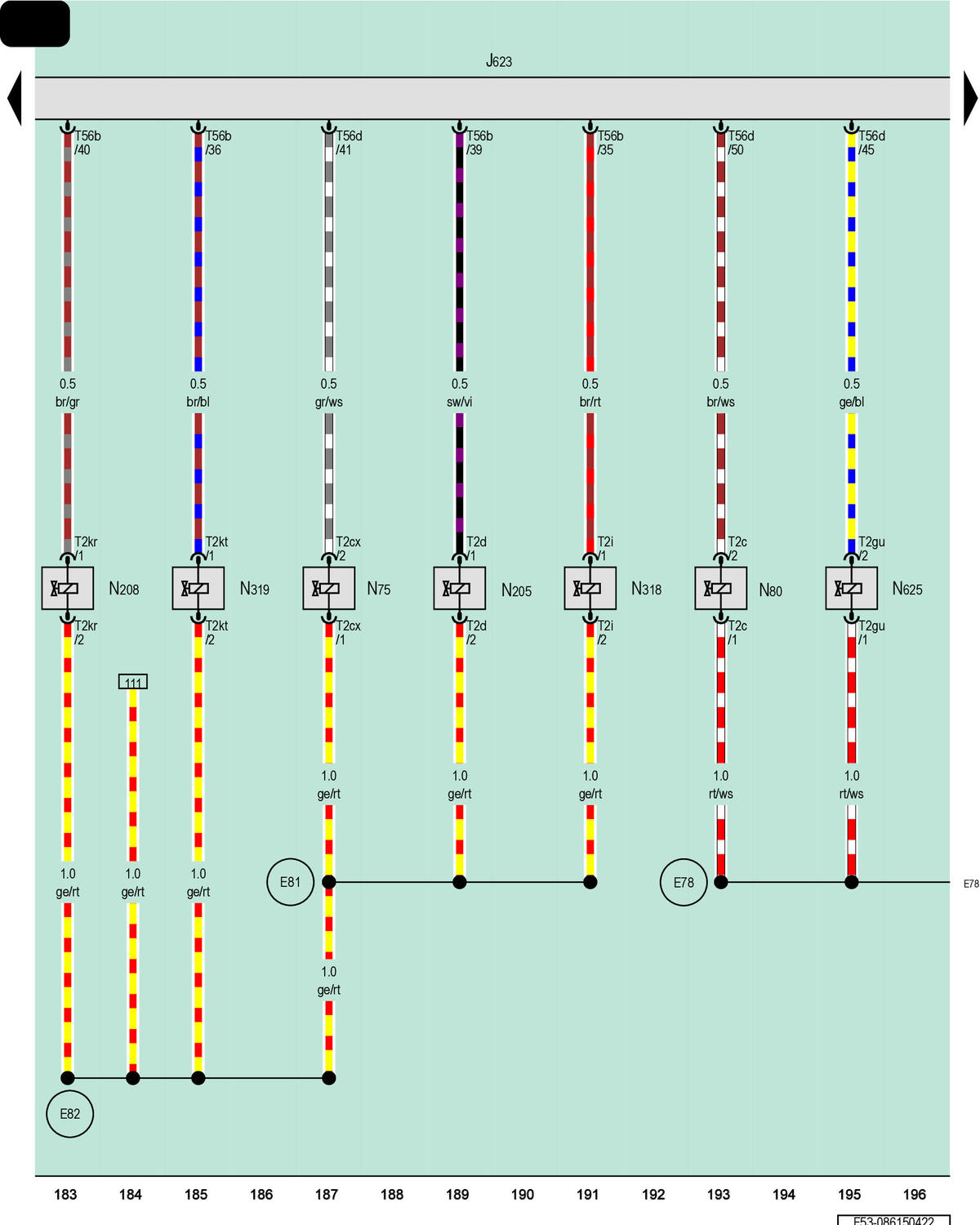

Engine/Motor Control Module, WASTEGATE Bypass Regulator Valve, EVAP Canister Purge Regulator Valve 1, Camshaft Adjustment Valve 1, Camshaft Adjustment Valve 2, Exhaust Camshaft Adjustment Valve 1, Exhaust Camshaft Adjustment Valve 2, RECIRCULATION Valve, Bank 1

Courtesy of AUDI OF AMERICA, LLC

J623

Engine/Motor Control Module, In the Engine/Motor Compartment, Left Front

N75

Wastegate Bypass Regulator Valve

N80

EVAP Canister Purge Regulator Valve 1

N205

Camshaft Adjustment Valve 1

N208

Camshaft Adjustment Valve 2

N318

Exhaust Camshaft Adjustment Valve 1

N319

Exhaust Camshaft Adjustment Valve 2

N625

Recirculation Valve, Bank 1

T2c

2-Pin Connector, Black

T2cx

2-Pin Connector, Black

T2d

2-Pin Connector, Black

T2gu

2-Pin Connector, Black

T2i

2-Pin Connector, Black

T2kr

2-Pin Connector, Black

T2kt

2-Pin Connector, Black

T56b

56-Pin Connector, Black, White

T56d

56-Pin Connector, Black, Purple

E78

Connection 87a (in Engine Wiring Harness) 2

E81

Connection 87a (in Engine Wiring Harness) 5

E82

Connection 87a (in Engine Wiring Harness) 6
