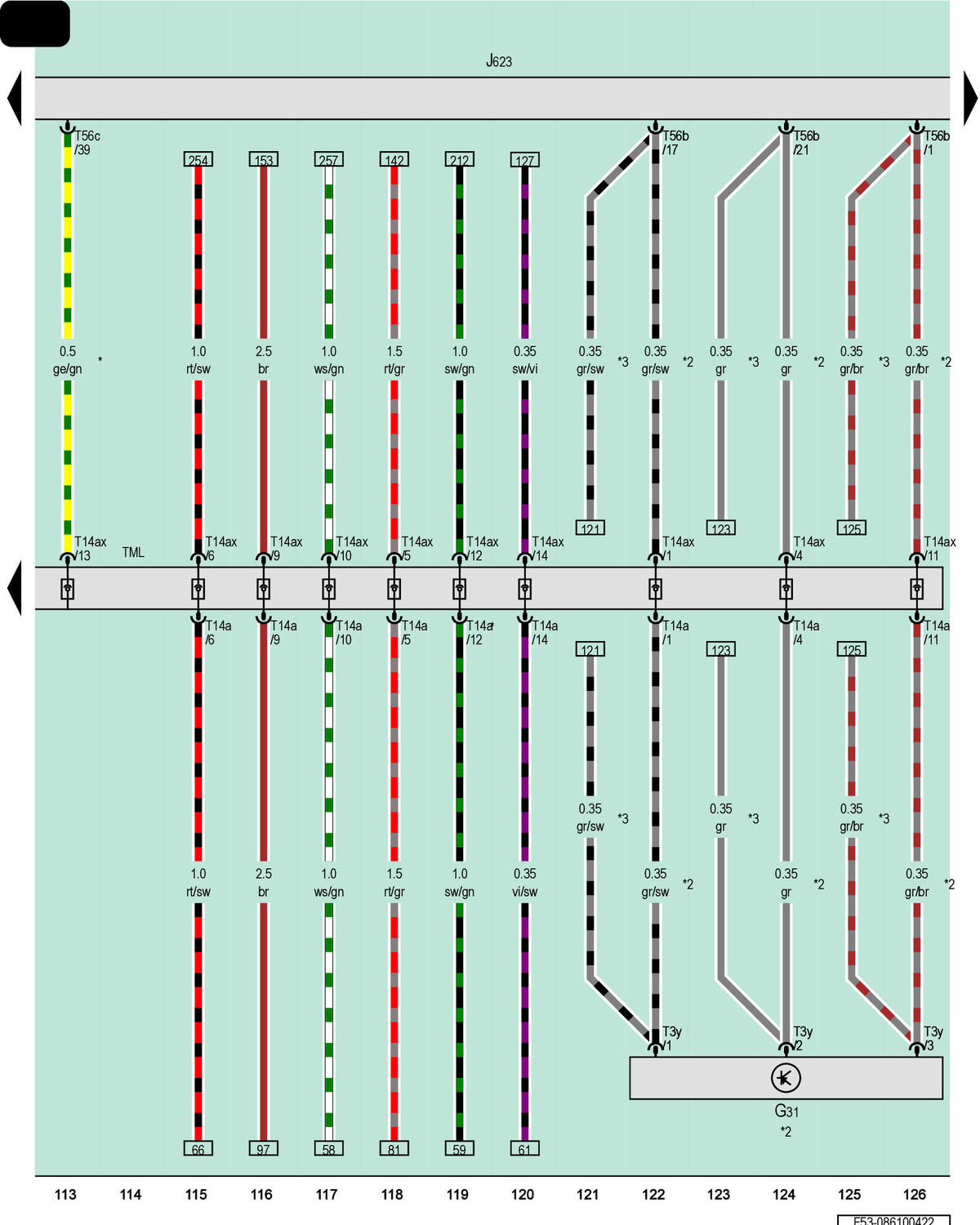

Charge Air Pressure Sensor, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

G31

Charge Air Pressure Sensor

J623

Engine/Motor Control Module, In the Engine/Motor Compartment, Left Front

T3y

3-Pin Connector, Black

T14a

14-Pin Connector, Black

T14ax

14-Pin Connector, Black

T56b

56-Pin Connector, Black, White

T56c

56-Pin Connector, Black, Blue

TML

Coupling Point in Engine/Motor Compartment, Left

*

Not Used

*2

Running Change

*3

Omitted as a Running Change
