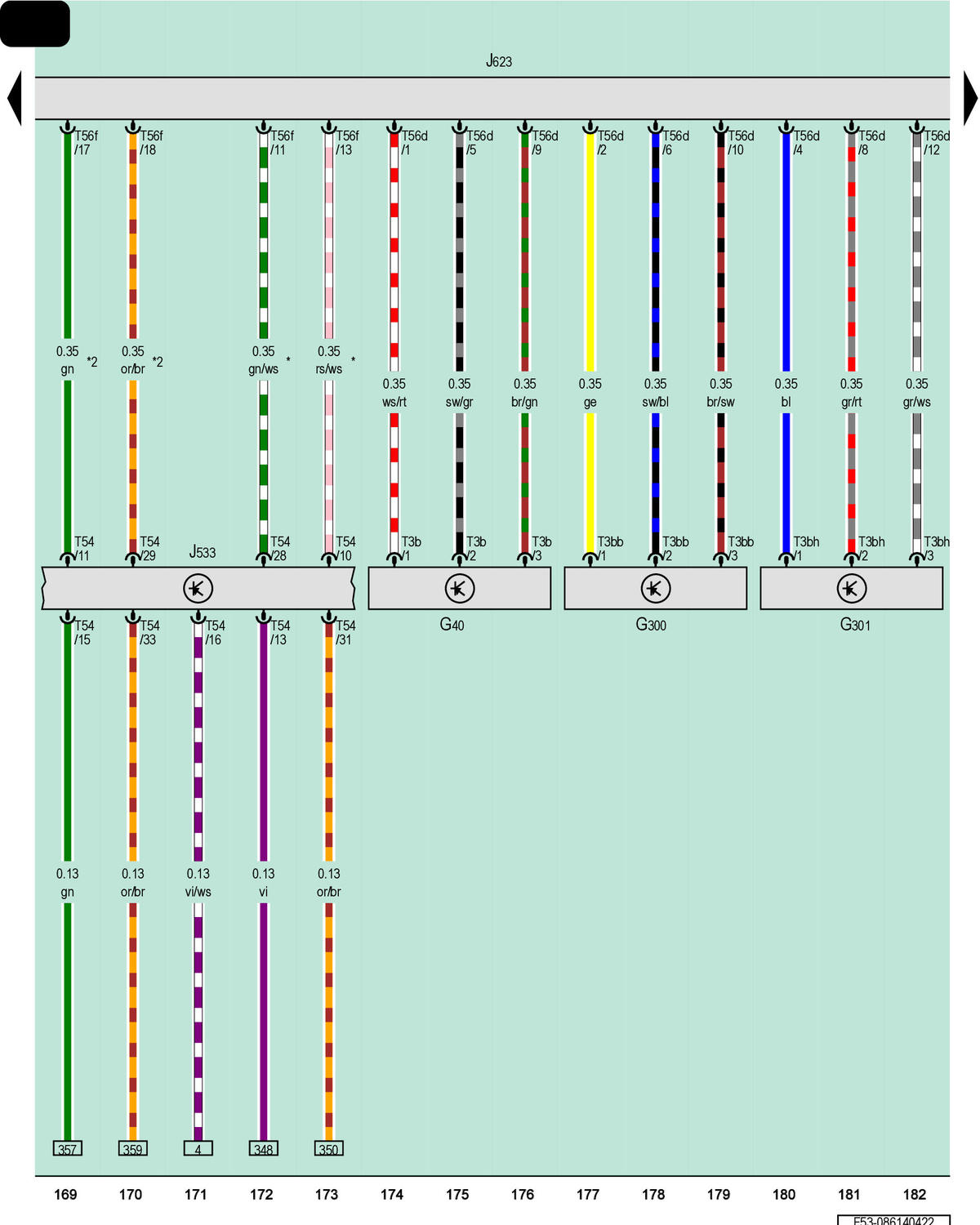

Camshaft Position Sensor, Camshaft Position Sensor 3, Camshaft Position Sensor 4, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

G40

Camshaft Position Sensor

G300

Camshaft Position Sensor 3

G301

Camshaft Position Sensor 4

J533

Data Bus on Board Diagnostic Interface

J623

Engine/Motor Control Module, In the Engine/Motor Compartment, Left Front

T3b

3-Pin Connector, Black

T3bb

3-Pin Connector, Black

T3bh

3-Pin Connector, Black

T54

54-Pin Connector, Black

T56d

56-Pin Connector, Black, Purple

T56f

56-Pin Connector, Black, Black

*

Data Bus Wire (Flexray Bus)

*2

Data Bus Wire (CAN Bus)
