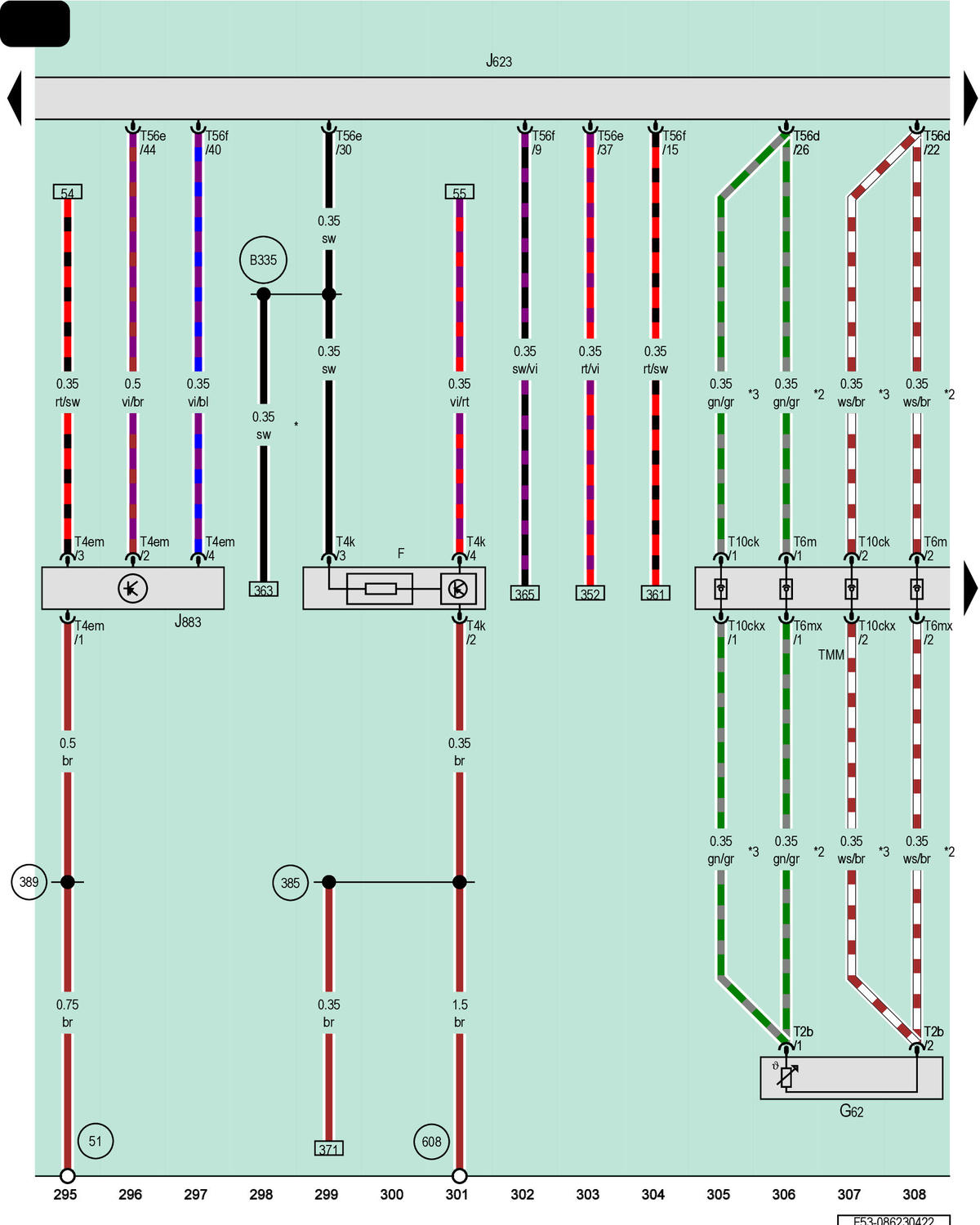

Brake Lamp Switch, Engine Coolant Temperature Sensor, Engine/Motor Control Module, Exhaust Door Control Unit

Courtesy of AUDI OF AMERICA, LLC

F

Brake Lamp Switch, On the Brake Booster

G62

Engine Coolant Temperature Sensor

J623

Engine/Motor Control Module, In the Engine/Motor Compartment, Left Front

J883

Exhaust Door Control Unit

T2b

2-Pin Connector, Black

T4em

4-Pin Connector, Black

T4k

4-Pin Connector, Black

T6m

6-Pin Connector, Black

T6mx

6-Pin Connector, Black

T10ck

10-Pin Connector, Black

T10ckx

10-Pin Connector, Black

T56d

56-Pin Connector, Black, Purple

T56e

56-Pin Connector, Black, Green

T56f

56-Pin Connector, Black, Black

TMM

Coupling Point in Engine/Motor Compartment, Center

51

Ground Connection in Luggage Compartment, Right

385

Ground Connection 20 (in Main Wiring Harness)

389

Ground Connection 24 (in Main Wiring Harness)

608

Ground Connection in Plenum Chamber, Center

B335

Connection 54 (in Main Wiring Harness) 1

*

Diameter Depends on Equipment

*2

Omitted as a Running Change

*3

Running Change
