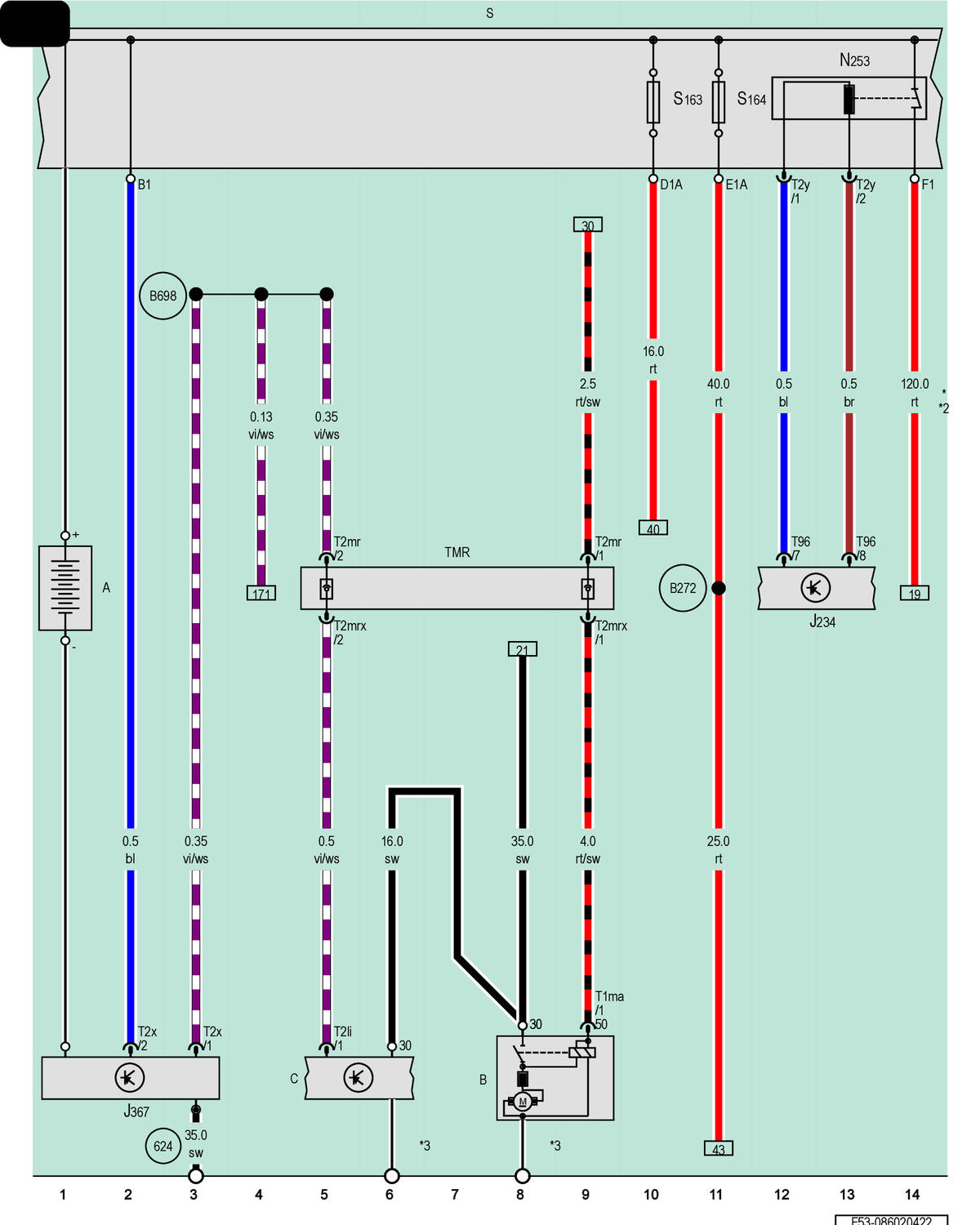

Battery, Starter, Generator, Fuses (On Fuse Panel), Coupling Point In Engine/Motor Compartment, Right

Courtesy of AUDI OF AMERICA, LLC

A

Battery, In the Luggage Compartment

B

Starter

C

Generator

J234

Airbag Control Module

J367

Battery Monitoring Control Module

N253

Battery Interrupt Igniter

S

Fuses (On Fuse Panel), On the Battery Fuse Panel

S163

Fuse 2 (Terminal 30) on Battery Fuse Panel

S164

Fuse 3 (Terminal 30) on Battery Fuse Panel

T1ma

1-Pin Connector, Black

T2li

2-Pin Connector, Black

T2mr

2-Pin Connector, Black

T2mrx

2-Pin Connector, Black

T2x

2-Pin Connector, Black

T2y

2-Pin Connector, Yellow

T96

96-Pin Connector, Yellow

TMR

Coupling Point in Engine/Motor Compartment, Right

624

Ground Connection near Starter Battery

B272

Positive Connection (30) (in Main Wiring Harness)

B698

LIN Bus Connection 3 (in Main Wiring Harness)

*

Diameter Depends on Equipment

*2

Different Wire Color Possible

*3

Ground Supply via the Housing
