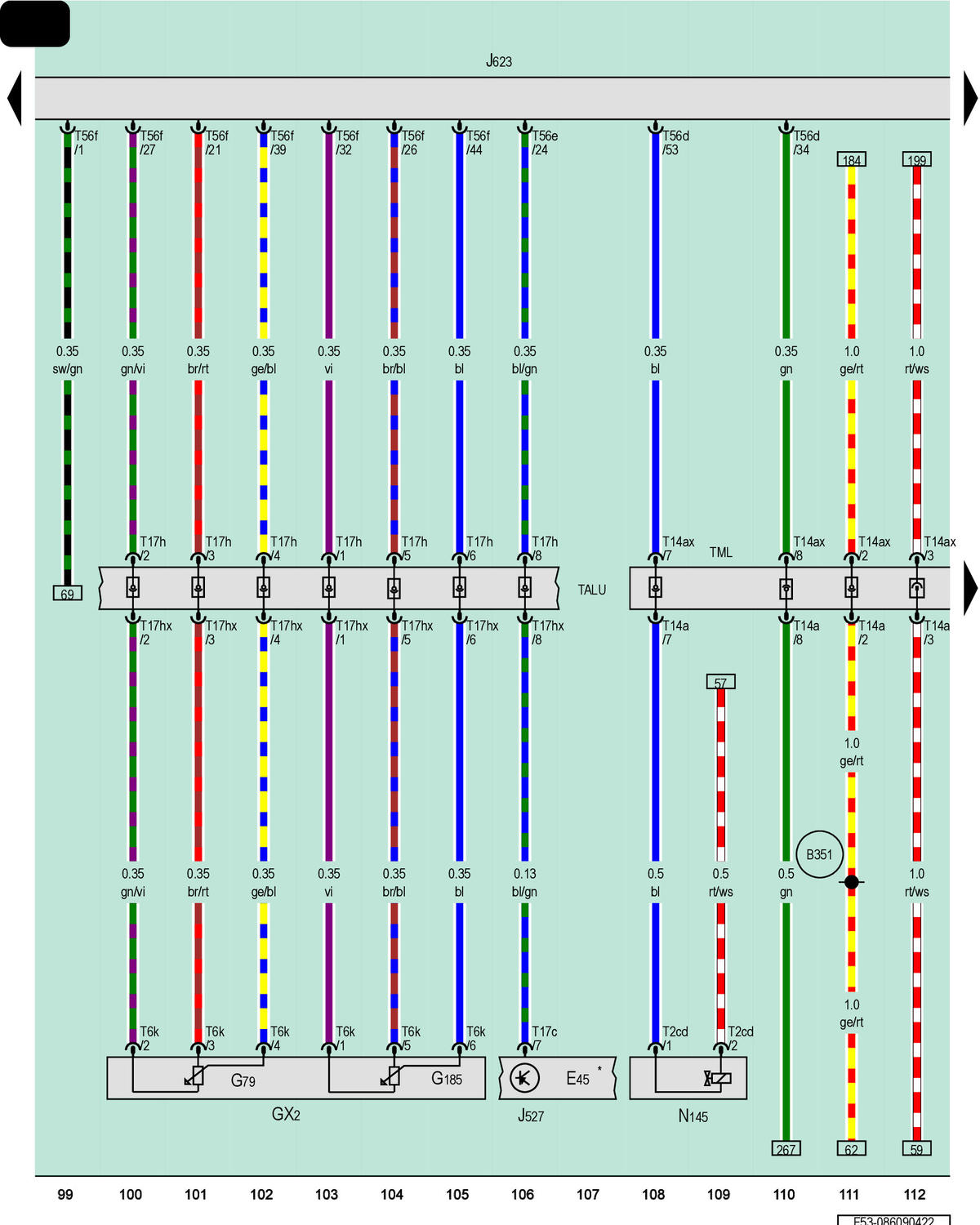

Accelerator Pedal Module, Steering Column Electronics Control Module, Engine/Motor Control Module, Right ELECTROHYDRAULIC Engine Mount Solenoid Valve

Courtesy of AUDI OF AMERICA, LLC

E45

Cruise Control Switch

GX2

Accelerator Pedal Module

G79

Accelerator Pedal Position Sensor

G185

Accelerator Pedal Position Sensor 2

J527

Steering Column Electronics Control Module

J623

Engine/Motor Control Module, In the Engine/Motor Compartment, Left Front

N145

Right Electrohydraulic Engine Mount Solenoid Valve

T2cd

2-Pin Connector, Naturally Cloudy

T6k

6-Pin Connector, Black

T14a

14-Pin Connector, Black

T14ax

14-Pin Connector, Black

T17c

17-Pin Connector, Yellow

T17h

17-Pin Connector, White

T17hx

17-Pin Connector, White

T56d

56-Pin Connector, Black, Purple

T56e

56-Pin Connector, Black, Green

T56f

56-Pin Connector, Black, Black

TALU

Coupling Point on Left A-Pillar, Bottom

TML

Coupling Point in Engine/Motor Compartment, Left

B351

Positive Connection 2 (87a) (in Main Wiring Harness)

For Vehicles with Cruise Control System

Not Used
