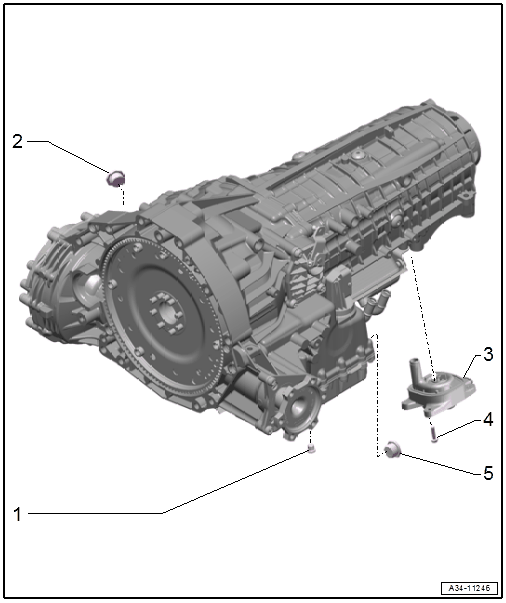

Drain and Plug
- Plugs
- Replace after removing
- Tighten all the way
- For the ATF check and fill hole
- Plug
- For the transmission fluid inspection and fill hole
- Tightening Specification. Refer to -item 2- OVERVIEW - TRANSMISSION FLUID CIRCUIT List Item:Plug.
- Transmission Fluid Pump (MTF Pump)
- Must be removed for draining the transmission fluid (MTF). Refer to TRANSMISSION FLUID PUMP, REMOVING AND INSTALLING .
- Bolt
- Tightening Specification. Refer to -item 4- OVERVIEW - TRANSMISSION FLUID CIRCUIT List Item:Bolt.
- Plug/Plugs
- Replace after removing
- Tighten all the way
- For the ATF
