All-Wheel Drive Clutch Identification

Allocation on the All-Wheel Drive Clutch

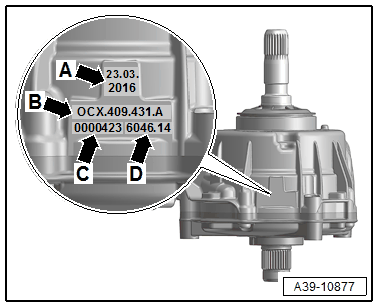

Fig 1: All Wheel Drive Clutch Identification

Courtesy of AUDI OF AMERICA, LLC

• -Arrow A- Production date

Example: 03/23/2016

• -Arrow B- Part number

Example: 0CX 409 431 A

• -Arrow C- Serial number

Example: 0000423

• -Arrow D- Clutch classification

Example: 6046.14

Overview - All-Wheel Drive Clutch. Refer to OVERVIEW - ALL-WHEEL DRIVE CLUTCH
