Overview - Drivetrain, Vehicles With All-Wheel Drive Clutch

Name and Ratio

NOTE:

The -arrows- point in direction of travel.

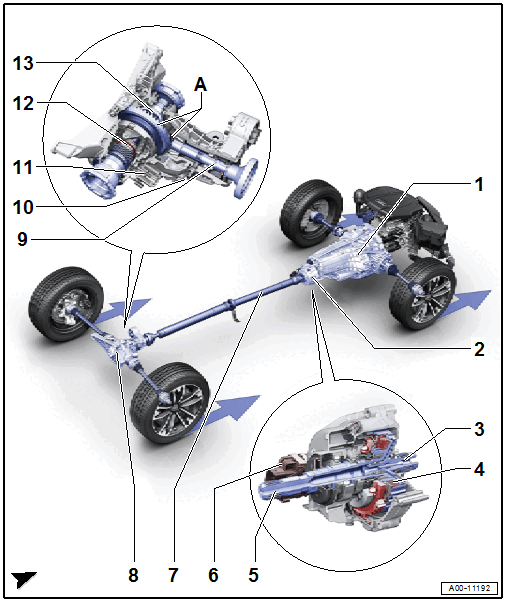

Fig 1: Drivetrain Components Location (AWD)

Courtesy of AUDI OF AMERICA, LLC

1 - Manual Transmission
- The component locations in FWD and AWD transmissions are identical
2 - All-Wheel Drive Clutch
- Overview. Refer to All-Wheel Drive Clutch .
3 - Input Shaft All-Wheel Drive Clutch
4 - Multi-Plate Clutch
5 - Transmission Output Shaft
6 - All-Wheel Drive Control Module -J492-
With:
- All-Wheel Drive Clutch Actuator -V622-
- All-Wheel Drive Clutch Position Sensor -G969-
- Removing and Installing. Refer to CONTROL MODULE, REMOVING AND INSTALLING .
7 - Driveshaft
- Overview. Refer to Driveshaft
8 - Rear Final Drive
- Overview. Refer to Final Drive
9 - Rear Pinion
10 - Driveshaft Speed Sensor -G970-
11 - All-Wheel Drive Clutch Actuator 2 -V623-
12 - Dog Clutch
13 - Rear Differential
A - Rear Final Drive
