Overview - Spring, RS Competition

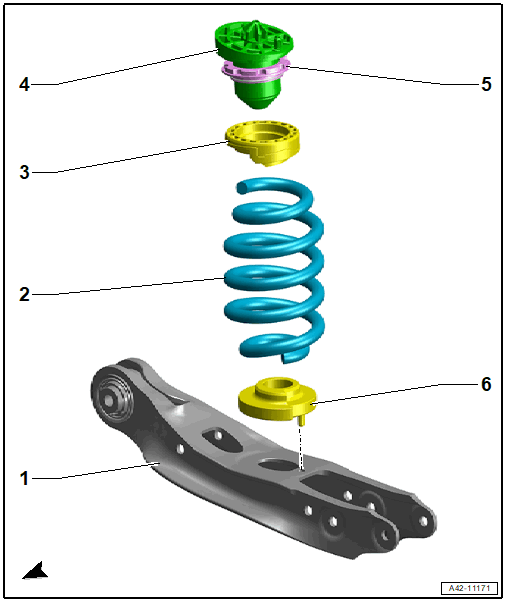

Fig 1: Exploded View Spring, RS Competition

Courtesy of AUDI OF AMERICA, LLC

Rear Lower Transverse Link
- Removing and installing. Refer to REAR LOWER TRANSVERSE LINK, REMOVING AND INSTALLING .
  WARNING:
  If the coil spring breaks resulting in surface damage to the transverse link, then the transverse link must be replaced.
Coil Spring
- The coil spring must be installed so that the upper marking is in the spring plate
- Removing and installing. Refer to SPRING, REMOVING AND INSTALLING .
- Installation position. Refer to Figure.
- Installation direction. Refer to Figure.
Spring Support
Upper Spring Plate
- Installation position. Refer to Figure.
Adjusting Nut
- Adjusting. Refer to the appropriate Service Information.
Lower Spring Plate
- Installation position. Refer to Figure.
