Overview - Knee Airbag, Driver Side

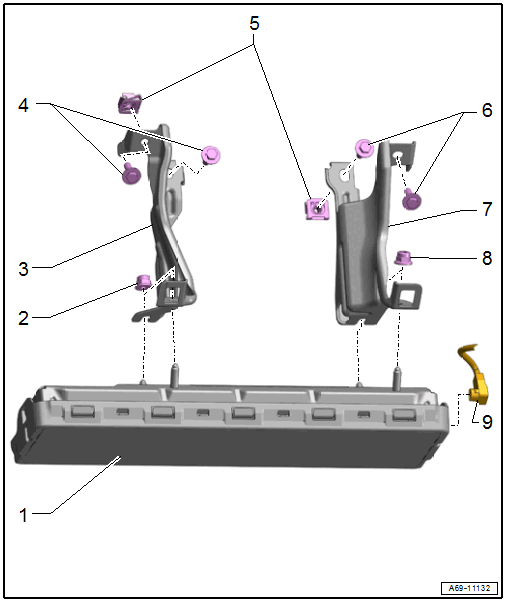

Fig 1: Exploded View Of Knee Airbag, Driver Side

Courtesy of AUDI OF AMERICA, LLC

Driver Knee Airbag Igniter -N295-
- Refer to KNEE AIRBAG WITH IGNITER, REMOVING AND INSTALLING, DRIVER SIDE
Nut
- Quantity: 2
- Replace after removing
- 6 Nm
Knee airbag bracket
Bolts
- 3 Nm
Spring Nut
- Quantity: 4
- Insert in the mounting points on the instrument panel crossmember
Bolts
- 3 Nm
Knee airbag bracket
Nut
- Quantity: 2
- Replace after removing
- 6 Nm
Connector
- For the Driver Knee Airbag Igniter -N295-
