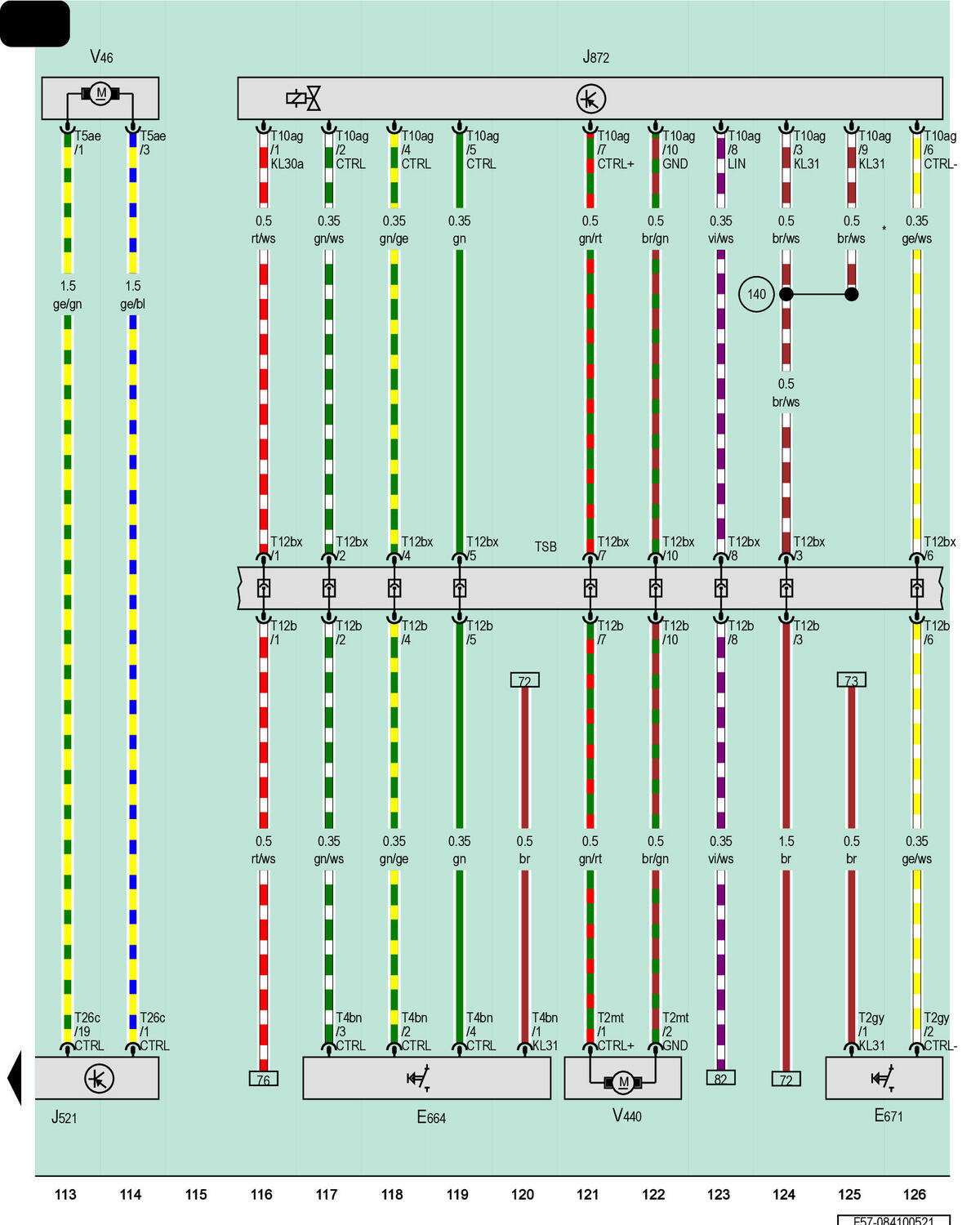

Front Passenger Seat Switch Module, Front Passenger Massage Function Button, Front Passenger Memory Seat Control Module, Front Passenger Multi-Contour Seat Control Module, Front Passenger Multi-Contour Seat Compressor

Courtesy of AUDI OF AMERICA, LLC

E664

Front Passenger Seat Switch Module

E671

Front Passenger Massage Function Button

J521

Front Passenger Memory Seat Control Module

J872

Front Passenger Multi-Contour Seat Control Module

T2gy

2-Pin Connector, Black

T2mt

2-Pin Connector, Black

T4bn

4-Pin Connector, Brown

T5ae

5-Pin Connector, Brown

T10ag

10-Pin Connector, Black

T12b

12-Pin Connector, Black

T12bx

12-Pin Connector, Black

T26c

26-Pin Connector, Blue

TSB

Front Passenger Seat Backrest Coupling Point

V46

Front Passenger Backrest Adjustment Motor

V440

Front Passenger Multi-Contour Seat Compressor

140

Ground Connection 2 (in Seat Adjustment Wiring Harness)

*

Coding Wire
