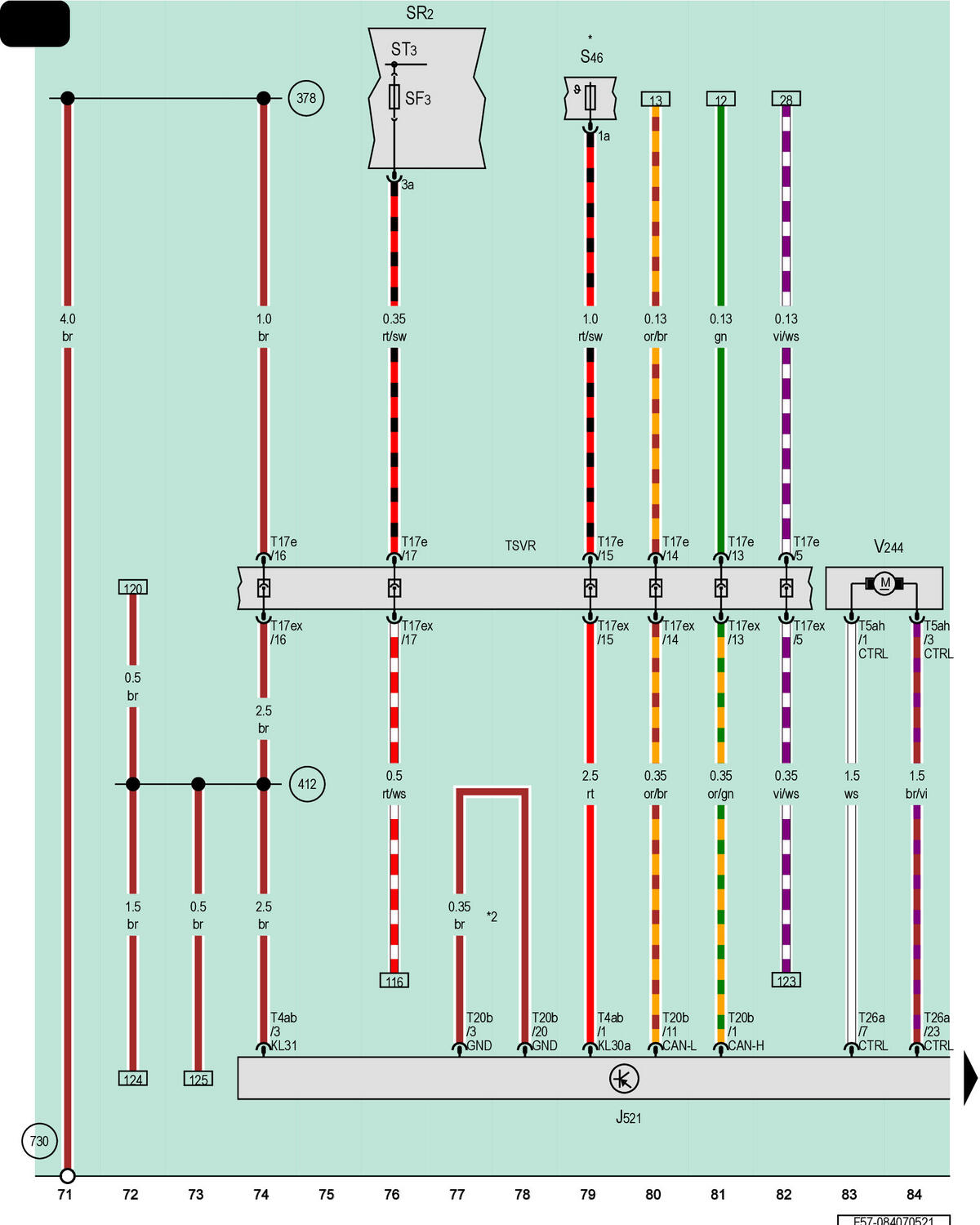

Front Passenger Memory Seat Control Module, Front Passenger Power Seat Adjustment Circuit Breaker 1, Right Front Seat Coupling Station, Front Passenger Seat Angle Adjustment Motor
J521
Front Passenger Memory Seat Control Module
SR2
Relay and Fuse Panel 2
SF3
Fuse 3 (On Fuse Panel F)
ST3
Fuse Panel 3, Brown
S46
Front Passenger Power Seat Adjustment Circuit Breaker 1
T4ab
4-Pin Connector, Black
T5ah
5-Pin Connector, Brown
T17e
17-Pin Connector, Red
T17ex
17-Pin Connector, Red
T20b
20-Pin Connector, Black
T26a
26-Pin Connector, White
TSVR
Right Front Seat Coupling Station
V244
Front Passenger Seat Angle Adjustment Motor
378
Ground Connection 13 (in Main Wiring Harness)
412
Ground Connection 3 (in Seat Adjustment Wiring Harness)
730
Ground Connection 1 on Right Rear Wheel Housing
*
Refer to Applicable Wiring Diagram for Fuse Positions
*2
Front Passenger Seat Coding Wire
