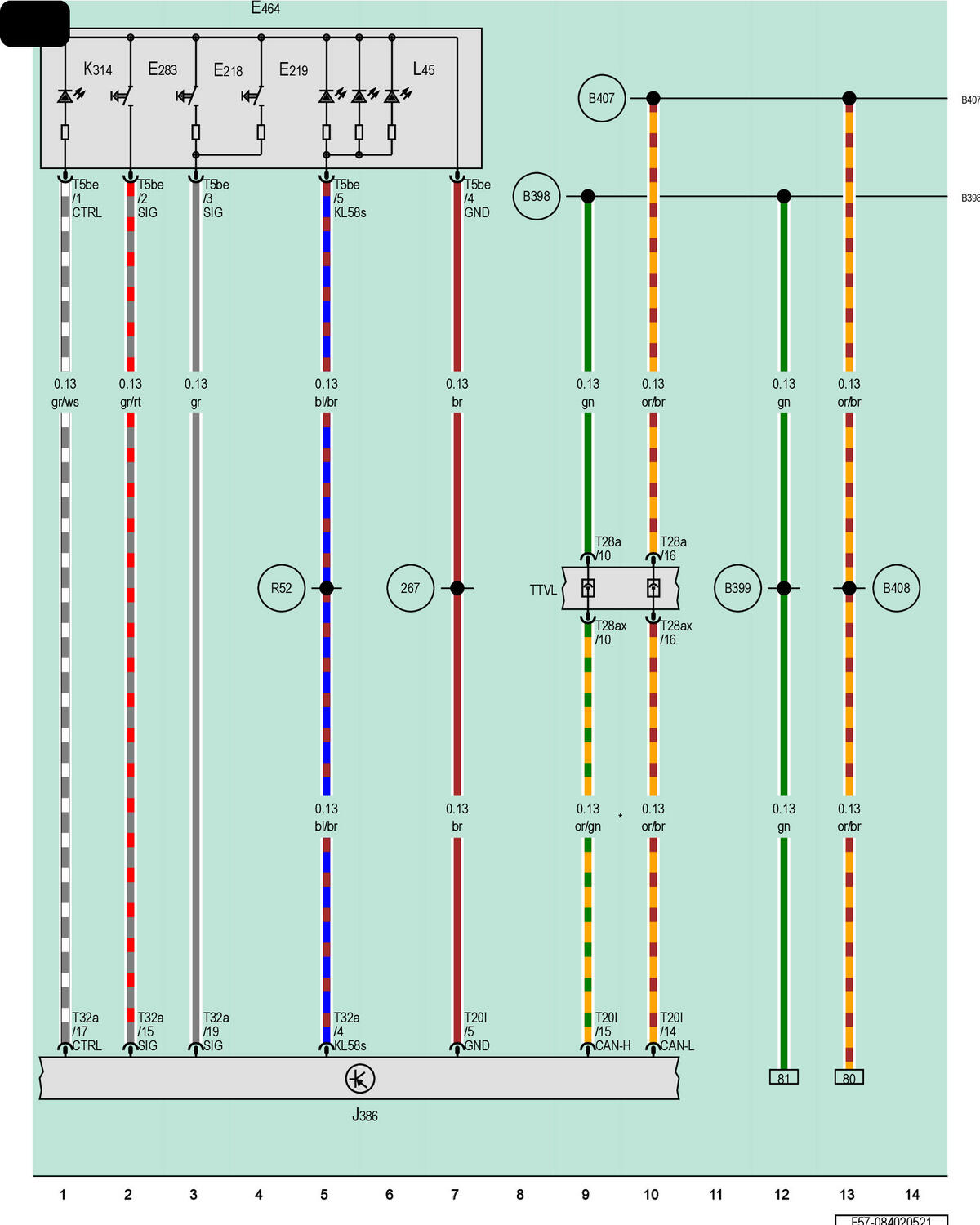

Driver Seat Memory Settings Control Head, Driver Door Control Module
E218
Memory Seat Position 1 Button
E219
Memory Seat Position 2 Button
E283
Driver Seat Memory Button
E464
Driver Seat Memory Settings Control Head
J386
Driver Door Control Module
K314
Driver Side Indicator Lamp for Memory Seat
L45
Memory Control Head Illumination Bulb
T5be
5-Pin Connector, Black
T20l
20-Pin Connector, White
T28a
28-Pin Connector, Black
T28ax
28-Pin Connector, Black
T32a
32-Pin Connector, Blue
TTVL
Left Front Door Coupling Point
267
Ground Connection 2 (in Driver Door Wiring Harness)
B398
Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)
B399
Comfort System CAN Bus High Connection 3 (in Main Wiring Harness)
B407
Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)
B408
Comfort System CAN Bus Low Connection 3 (in Main Wiring Harness)
R52
Connection 58S (in Driver Door Wiring Harness)
*
Different Wire Color Possible
