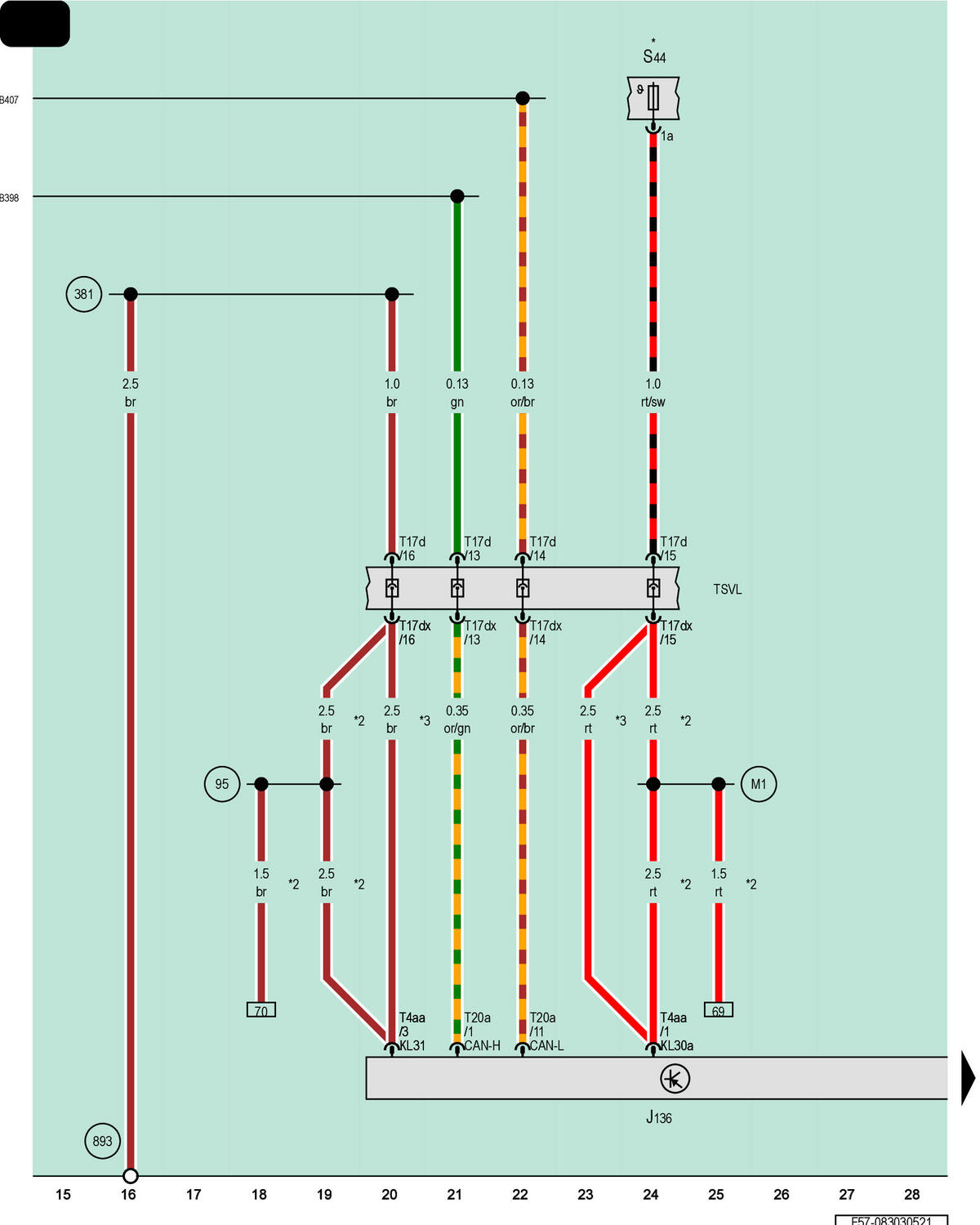

Memory Seat/Steering Column Adjustment Control Module, Driver Power Seat Adjustment Circuit Breaker 1
J136
Memory Seat/Steering Column Adjustment Control Module
S44
Driver Power Seat Adjustment Circuit Breaker 1
T4aa
4-Pin Connector, Black
T17d
17-Pin Connector, Red
T17dx
17-Pin Connector, Red
T20a
20-Pin Connector, Black
TSVL
Left Front Seat Coupling Station
95
Ground Connection 1 (in Seat Adjustment Wiring Harness)
381
Ground Connection 16 (in Main Wiring Harness)
893
Ground Connection 2 on Left B-Pillar
B398
Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)
B407
Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)
M1
Positive Connection 1 (30) (in Seat Adjustment Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
*2
For Vehicles with Lumbar Support Adjustment
*3
For Vehicles Without Lumbar Support
