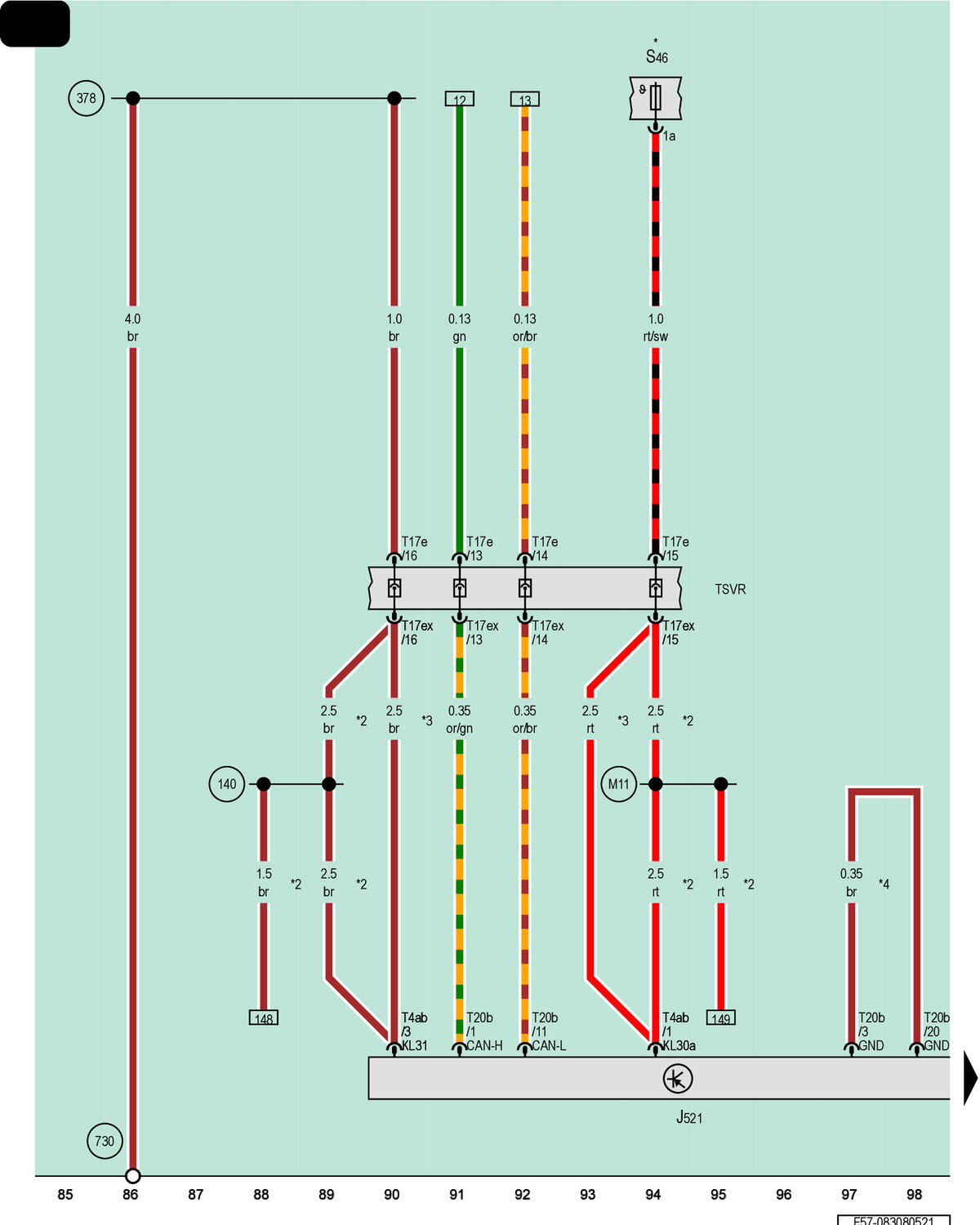

Front Passenger Memory Seat Control Module, Front Passenger Power Seat Adjustment Circuit Breaker 1
J521
Front Passenger Memory Seat Control Module
S46
Front Passenger Power Seat Adjustment Circuit Breaker 1
T4ab
4-Pin Connector, Black
T17e
17-Pin Connector, Red
T17ex
17-Pin Connector, Red
T20b
20-Pin Connector, Black
TSVR
Right Front Seat Coupling Station
140
Ground Connection 2 (in Seat Adjustment Wiring Harness)
378
Ground Connection 13 (in Main Wiring Harness)
730
Ground Connection 1 on Right Rear Wheel Housing
M11
Connection 2 (in Driver Seat Adjustment Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
*2
For Vehicles with Lumbar Support Adjustment
*3
For Vehicles Without Lumbar Support
*4
Front Passenger Seat Coding Wire
