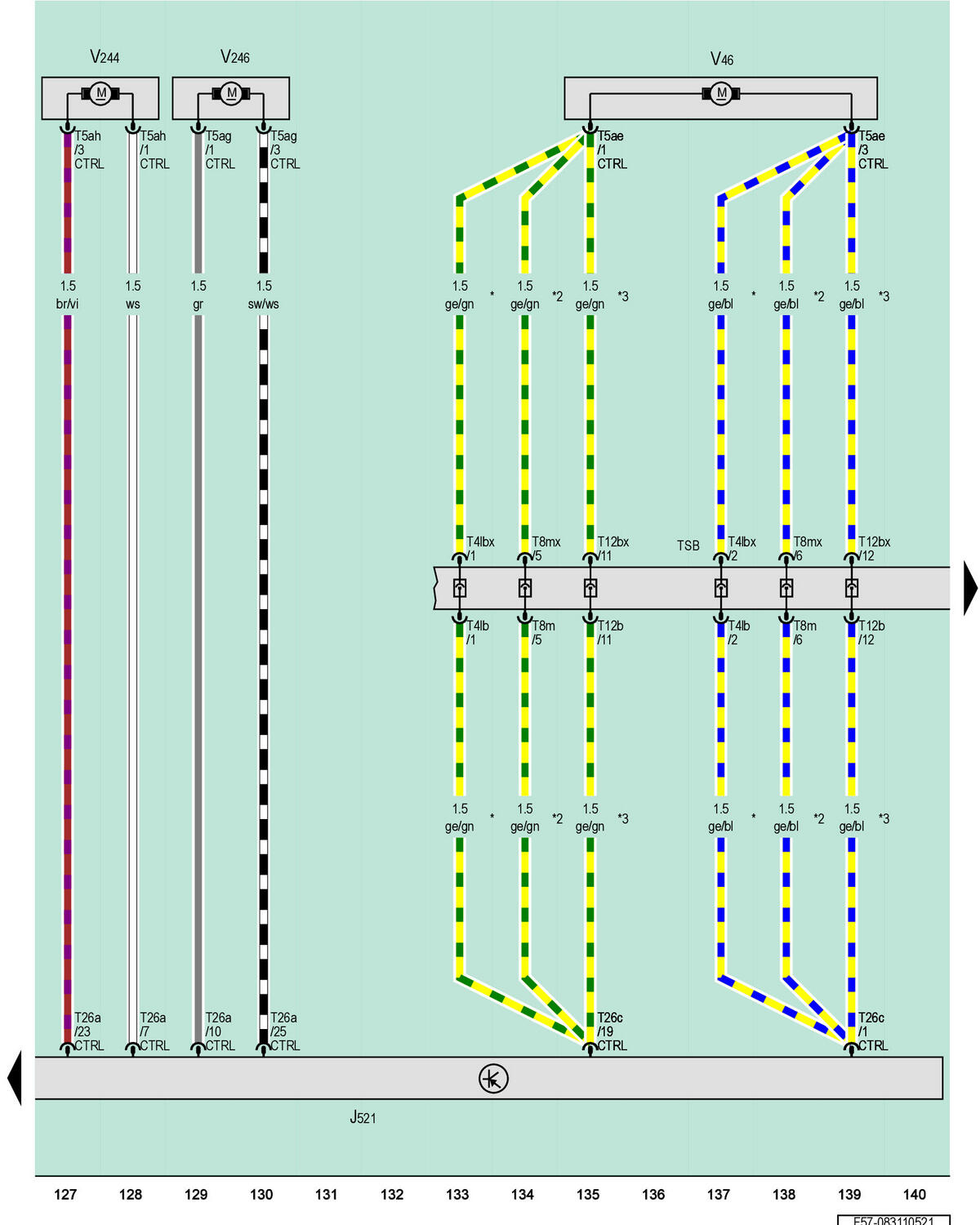

Front Passenger Memory Seat Control Module, Front Passenger Backrest Adjustment Motor, Front Passenger Seat Angle Adjustment Motor, Front Passenger Seat Height Adjustment Motor

Courtesy of AUDI OF AMERICA, LLC

J521

Front Passenger Memory Seat Control Module

T4lb

4-Pin Connector, Black

T4lbx

4-Pin Connector, Black

T5ae

5-Pin Connector, Brown

T5ag

5-Pin Connector, Brown

T5ah

5-Pin Connector, Brown

T8m

8-Pin Connector, Black

T8mx

8-Pin Connector, Black

T12b

12-Pin Connector, Black

T12bx

12-Pin Connector, Black

T26a

26-Pin Connector, White

T26c

26-Pin Connector, Blue

TSB

Front Passenger Seat Backrest Coupling Point

V46

Front Passenger Backrest Adjustment Motor

V244

Front Passenger Seat Angle Adjustment Motor

V246

Front Passenger Seat Height Adjustment Motor

For Vehicles Without Lumbar Support

For Vehicles with Lumbar Support Adjustment

For Vehicles with Seat Ventilation
