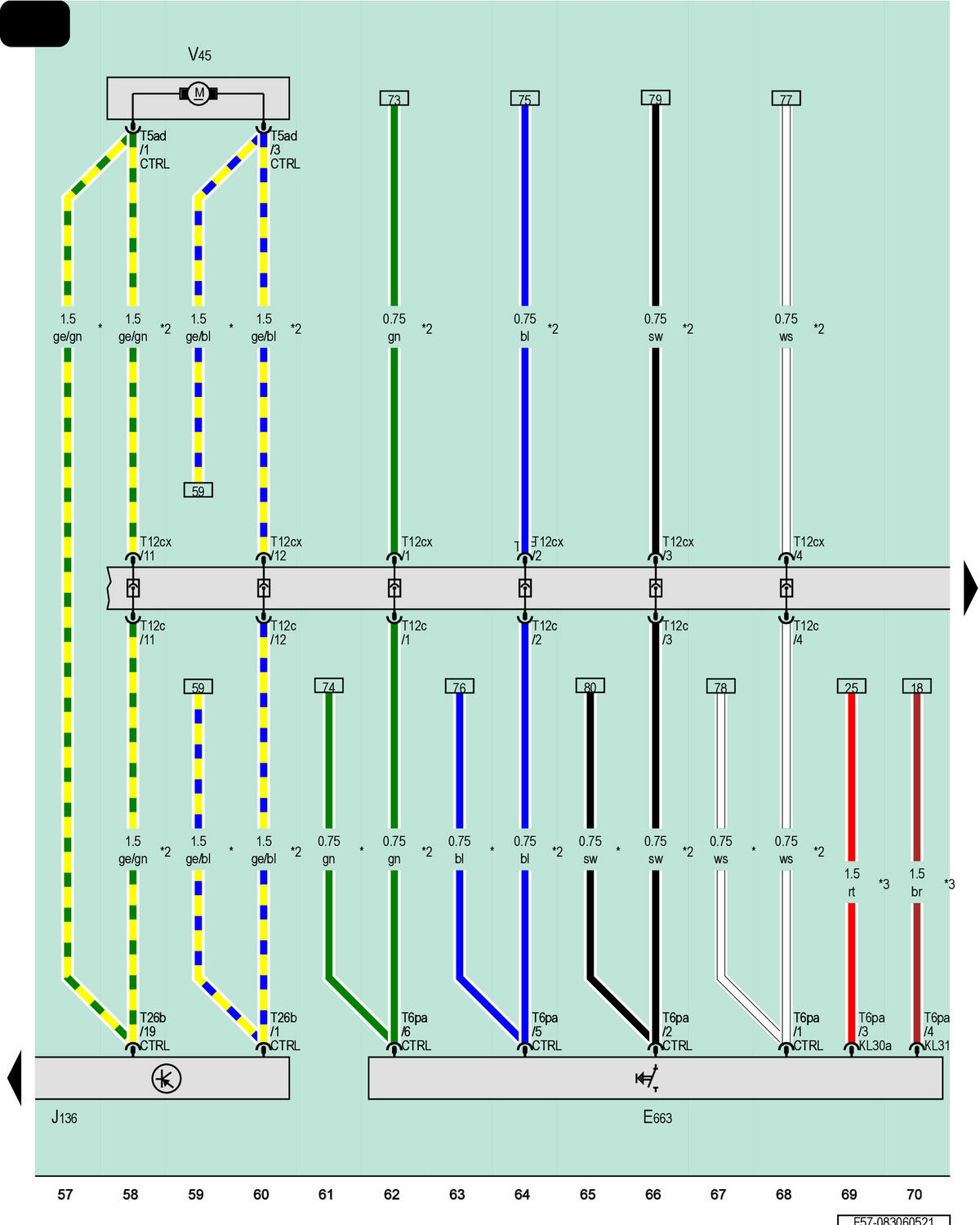

Driver Seat Switch Module, Memory Seat/Steering Column Adjustment Control Module, Driver Backrest Adjustment Motor

Courtesy of AUDI OF AMERICA, LLC

E663

Driver Seat Switch Module

J136

Memory Seat/Steering Column Adjustment Control Module

T5ad

5-Pin Connector, Brown

T6pa

6-Pin Connector, White

T12c

12-Pin Connector, Black

T12cx

12-Pin Connector, Black

T26

26-Pin Connector, White

T26b

26-Pin Connector, Blue

TSF

Driver Seat Backrest Coupling Point

V45

Driver Backrest Adjustment Motor

*

For Vehicles Without Heated Seats

*2

For Vehicles with Seat Heating

*3

For Vehicles with Lumbar Support Adjustment
