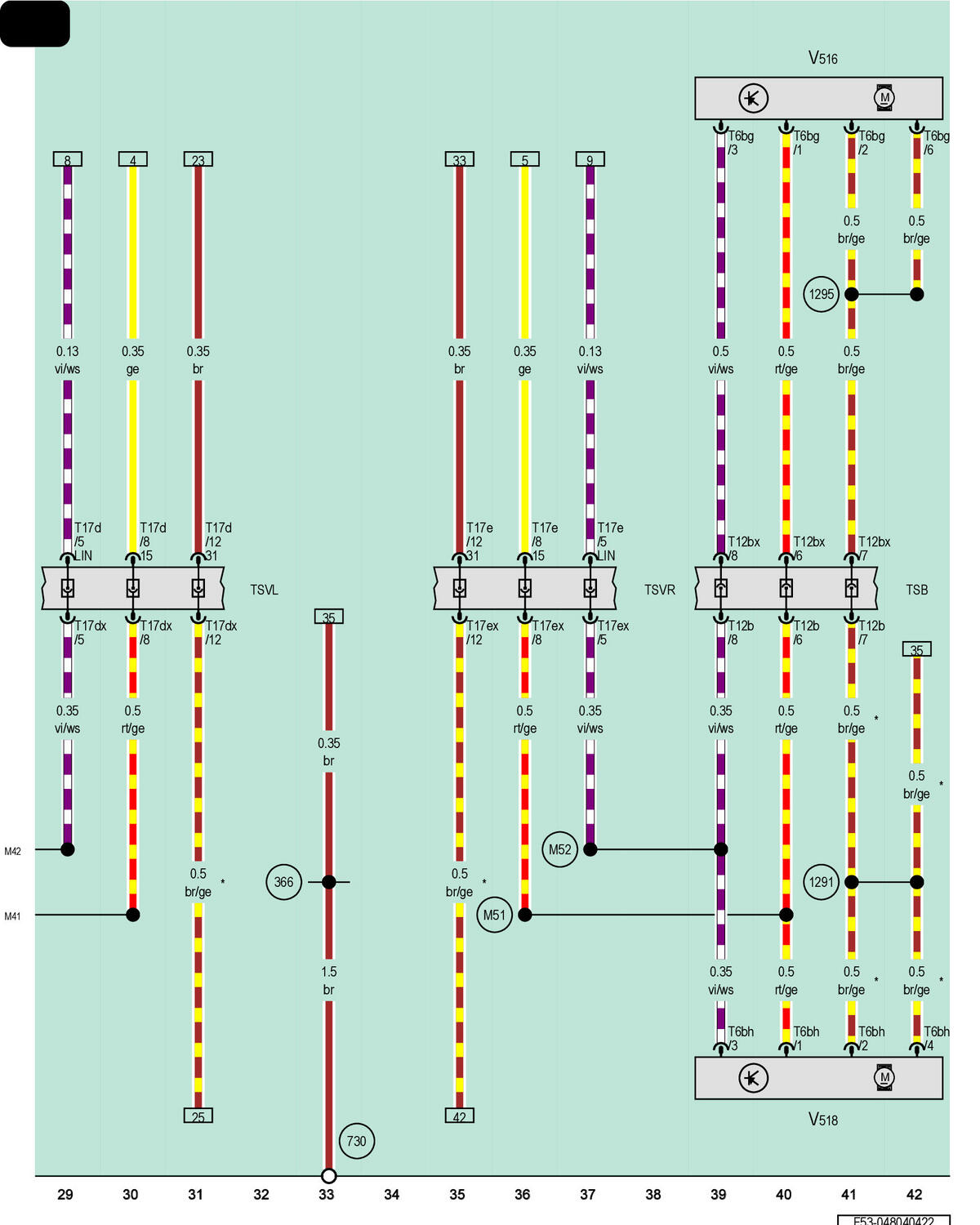

Right Front Seat Backrest Fan 1, Right Front Seat Cushion Fan 1, Ground Connection 1 (In Main Wiring Harness), Ground Connection 1 On Right Rear Wheel Housing
T6bg
6-Pin Connector, Black
T6bh
6-Pin Connector, Black
T12b
12-Pin Connector, Black
T12bx
12-Pin Connector, Black
T17d
17-Pin Connector, Red
T17dx
17-Pin Connector, Red
T17e
17-Pin Connector, Red
T17ex
17-Pin Connector, Red
TSB
Front Passenger Seat Backrest Coupling Point
TSVL
Left Front Seat Coupling Station
TSVR
Right Front Seat Coupling Station
V516
Right Front Seat Backrest Fan 1
V518
Right Front Seat Cushion Fan 1
366
Ground Connection 1 (in Main Wiring Harness)
730
Ground Connection 1 on Right Rear Wheel Housing
1291
Ground Connection 1 (in Right Front Seat Wiring Harness)
1295
Ground Connection 2 (in Right Front Seat Wiring Harness)
M41
Connection 1 (in Driver Seat Wiring Harness)
M42
Connection 2 (in Driver Seat Wiring Harness)
M51
Connection 1 (in Front Passenger Seat Wiring Harness)
M52
Connection 2 (in Front Passenger Seat Wiring Harness)
*
The Color of the Wires Depends on Vehicle Equipment
