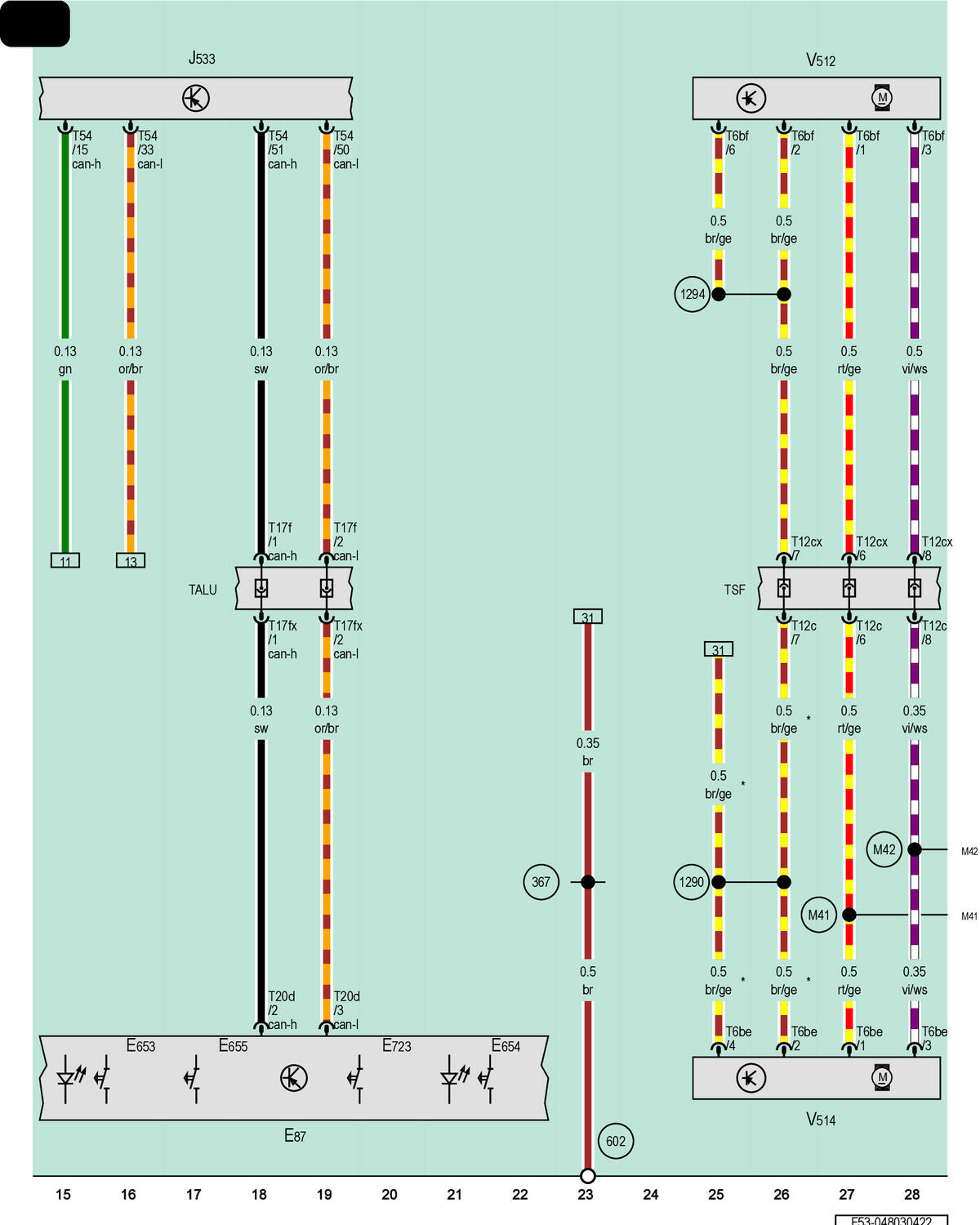

Front A/C Display Control Head, Seat Ventilation Switch, Seat Ventilation Switch 2, Data Bus On Board Diagnostic Interface, Left Front Seat Backrest Fan 1, Left Front Seat Cushion Fan 1
E87
Front A/C Display Control Head
E653
Left Seat Heating Button
E654
Right Seat Heating Button
E655
Seat Ventilation Switch, Driver Side
E723
Seat Ventilation Switch 2, Front Passenger Side
J533
Data Bus on Board Diagnostic Interface
T6be
6-Pin Connector, Black
T6bf
6-Pin Connector, Black
T12c
12-Pin Connector, Black
T12cx
12-Pin Connector, Black
T17f
17-Pin Connector, Red
T17fx
17-Pin Connector, Red
T20d
20-Pin Connector, Black
T54
54-Pin Connector, Black
TALU
Coupling Point on Left A-Pillar, Bottom
TSF
Driver Seat Backrest Coupling Point
V512
Left Front Seat Backrest Fan 1
V514
Left Front Seat Cushion Fan 1
367
Ground Connection 2 (in Main Wiring Harness)
602
Ground Connection in Left Front Footwell
1290
Ground Connection 1 (in Left Front Seat Wiring Harness)
1294
Ground Connection 2 (in Left Front Seat Wiring Harness)
M41
Connection 1 (in Driver Seat Wiring Harness)
M42
Connection 2 (in Driver Seat Wiring Harness)
*
The Color of the Wires Depends on Vehicle Equipment
