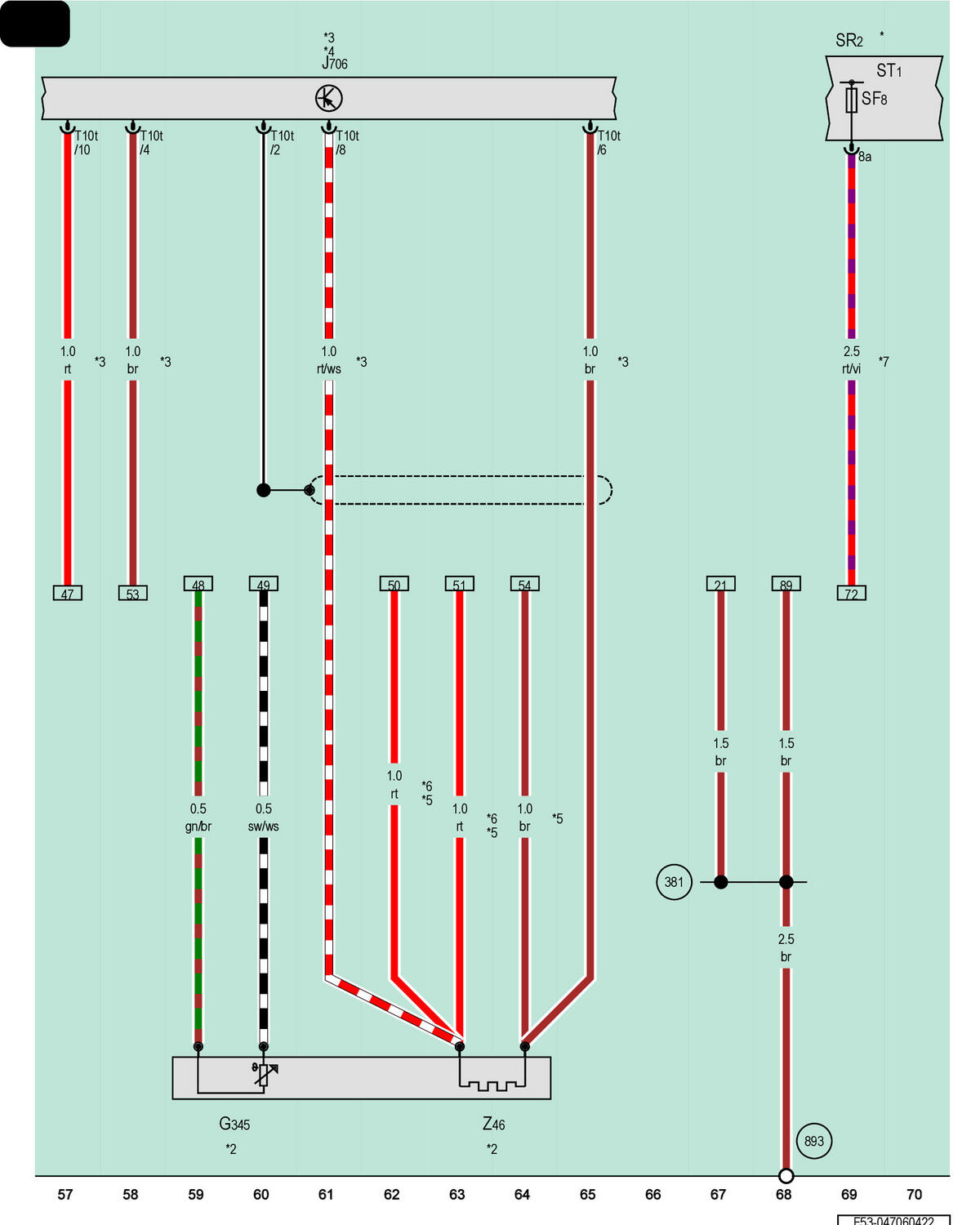

Right Front Seat Temperature Sensor, Relay And Fuse Panel 2, Right Front Seat Heating Element

Courtesy of AUDI OF AMERICA, LLC

G345

Right Front Seat Temperature Sensor

J706

Seat Occupant Detection System Control Module, Under the Front Passenger Seat

ST1

Fuse Panel 1, Black

SR2

Relay and Fuse Panel 2

SF8

Fuse 8 (On Fuse Panel F)

T10t

10-Pin Connector, Black

Z46

Right Front Seat Heating Element

381

Ground Connection 16 (in Main Wiring Harness)

893

Ground Connection 2 on Left B-Pillar

*

Refer to Applicable Wiring Diagram for Fuse Positions

*2

Pre-Wired Component

*3

For USA Only

*4

Refer to Applicable Airbag Wiring Diagram

*5

Not for USA

*6

Depending on Equipment

*7

4.0 Diameter Possible
