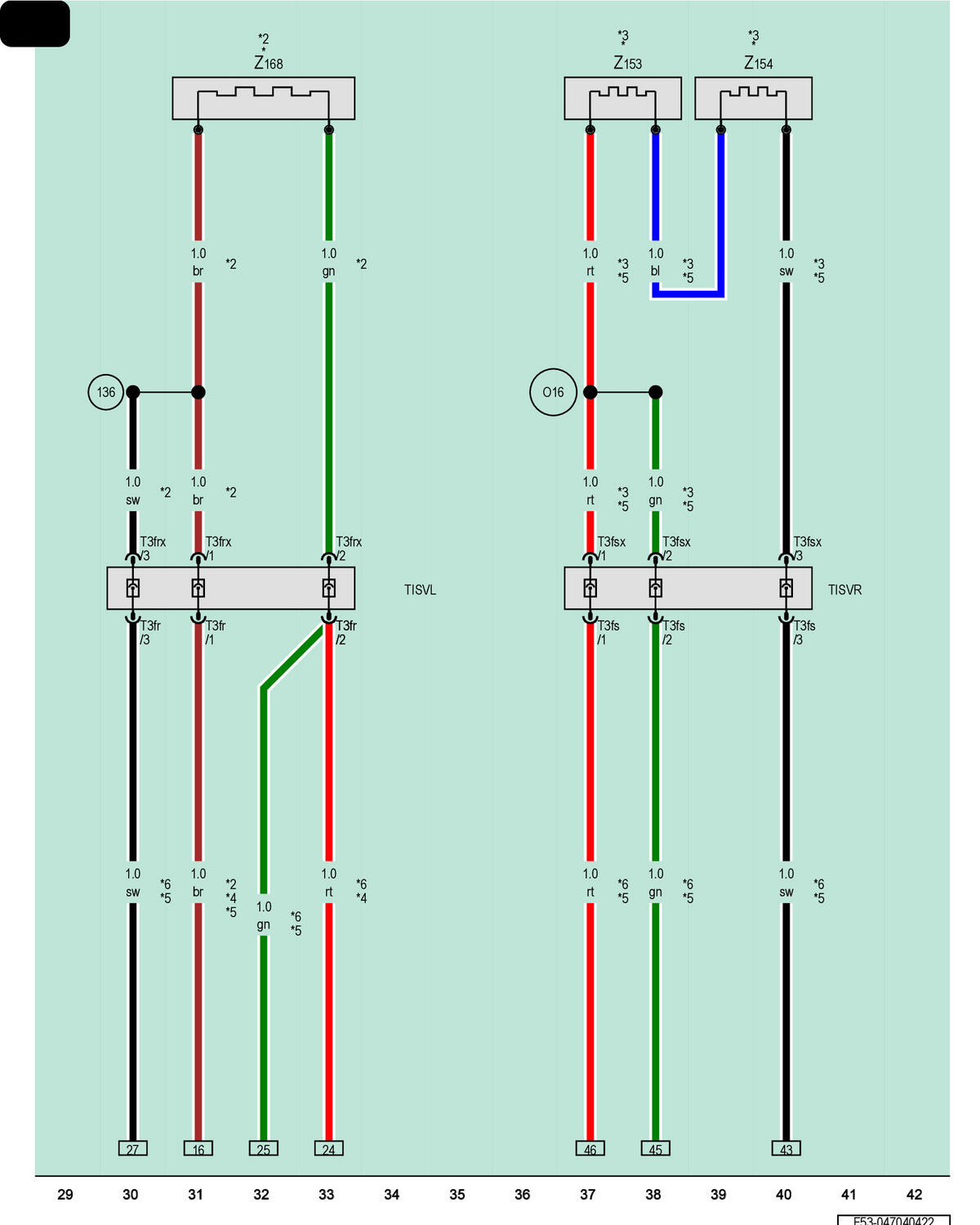

Left Seat Bolster Heating For Right Front Seat, Right Seat Bolster Heating For Right Front Seat, Left Front Seat Extension Heating Element

Courtesy of AUDI OF AMERICA, LLC

T3fr

3-Pin Connector

T3frx

3-Pin Connector

T3fs

3-Pin Connector

T3fsx

3-Pin Connector

TISVL

Coupling Station in Left Front Seat

TISVR

Coupling Station in Right Front Seat

Z153

Left Seat Bolster Heating for Right Front Seat

Z154

Right Seat Bolster Heating for Right Front Seat

Z168

Left Front Seat Extension Heating Element

136

Ground Connection 2 (in Heated Seats Wiring Harness)

O16

Connection 5 (in Heated Seats Wiring Harness)

*

Pre-Wired Component

*2

For Vehicles with Seat Depth Adjustment

*3

For Vehicles with Backrest Side Bolster Heating

*4

Version 1

*5

Version 2

*6

Depending on Equipment
