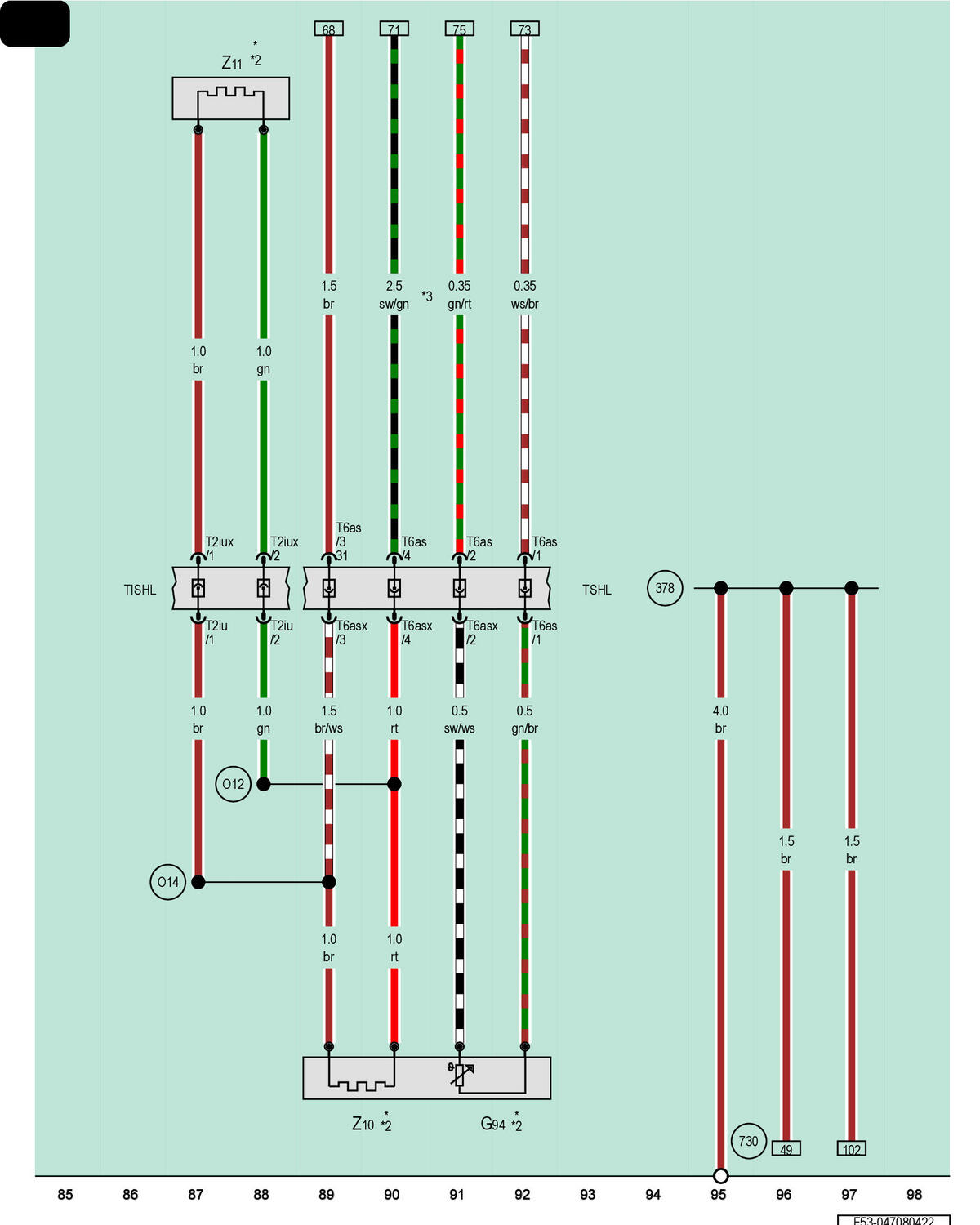

Left Rear Heated Seat Temperature Sensor, Left Rear Bench Seat Heating Element, Left Rear Backrest Heating Element

Courtesy of AUDI OF AMERICA, LLC

G94

Left Rear Heated Seat Temperature Sensor

T2iu

2-Pin Connector, Black

T2iux

2-Pin Connector, Black

T6as

6-Pin Connector, Green

T6asx

6-Pin Connector, Green

TISHL

Coupling Point in Left Rear Seat

TSHL

Left Rear Seat Coupling Station

Z10

Left Rear Bench Seat Heating Element

Z11

Left Rear Backrest Heating Element

378

Ground Connection 13 (in Main Wiring Harness)

730

Ground Connection 1 on Right Rear Wheel Housing

O12

Connection 1 (in Heated Seats Wiring Harness)

O14

Connection 3 (in Heated Seats Wiring Harness)

*

Pre-Wired Component

*2

Depending on Equipment

*3

1.5 Diameter Possible
