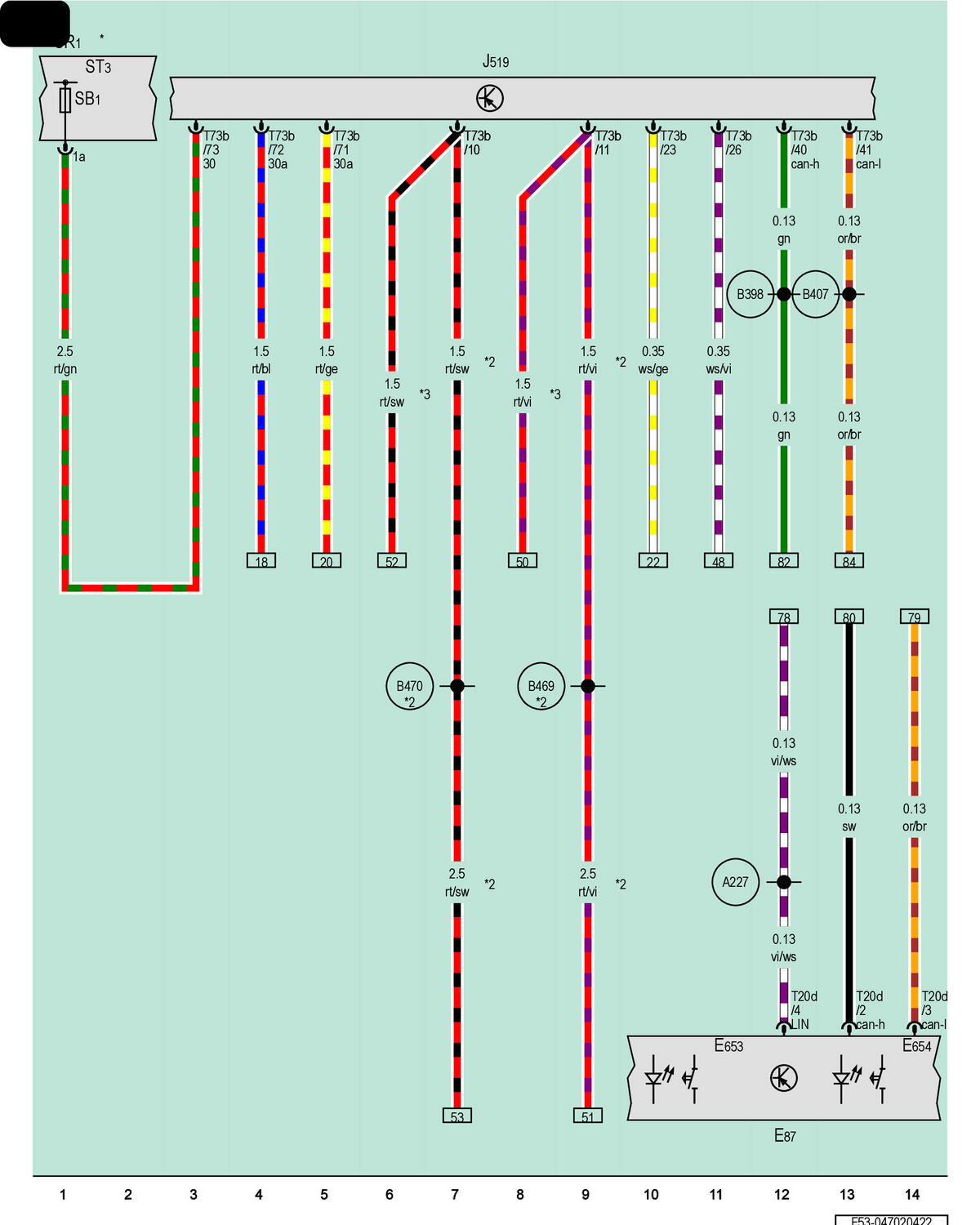

Front A/C Display Control Head, Left Seat Heating Button, Vehicle Electrical System Control Module, Relay And Fuse Panel 1

Courtesy of AUDI OF AMERICA, LLC

E87

Front A/C Display Control Head

E653

Left Seat Heating Button

E654

Right Seat Heating Button

J519

Vehicle Electrical System Control Module

SR1

Relay and Fuse Panel 1

SB1

Fuse 1 (On Fuse Panel B)

ST3

Fuse Panel 3, Black

T20d

20-Pin Connector, Black

T73b

73-Pin Connector, Black

A227

LIN Bus Connection 2 (in Instrument Panel Wiring Harness)

B398

Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)

B407

Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)

B469

Connection 5 (in Main Wiring Harness)

B470

Connection 6 (in Main Wiring Harness)

Refer to Applicable Wiring Diagram for Fuse Positions

Omitted as a Running Change

Running Change
