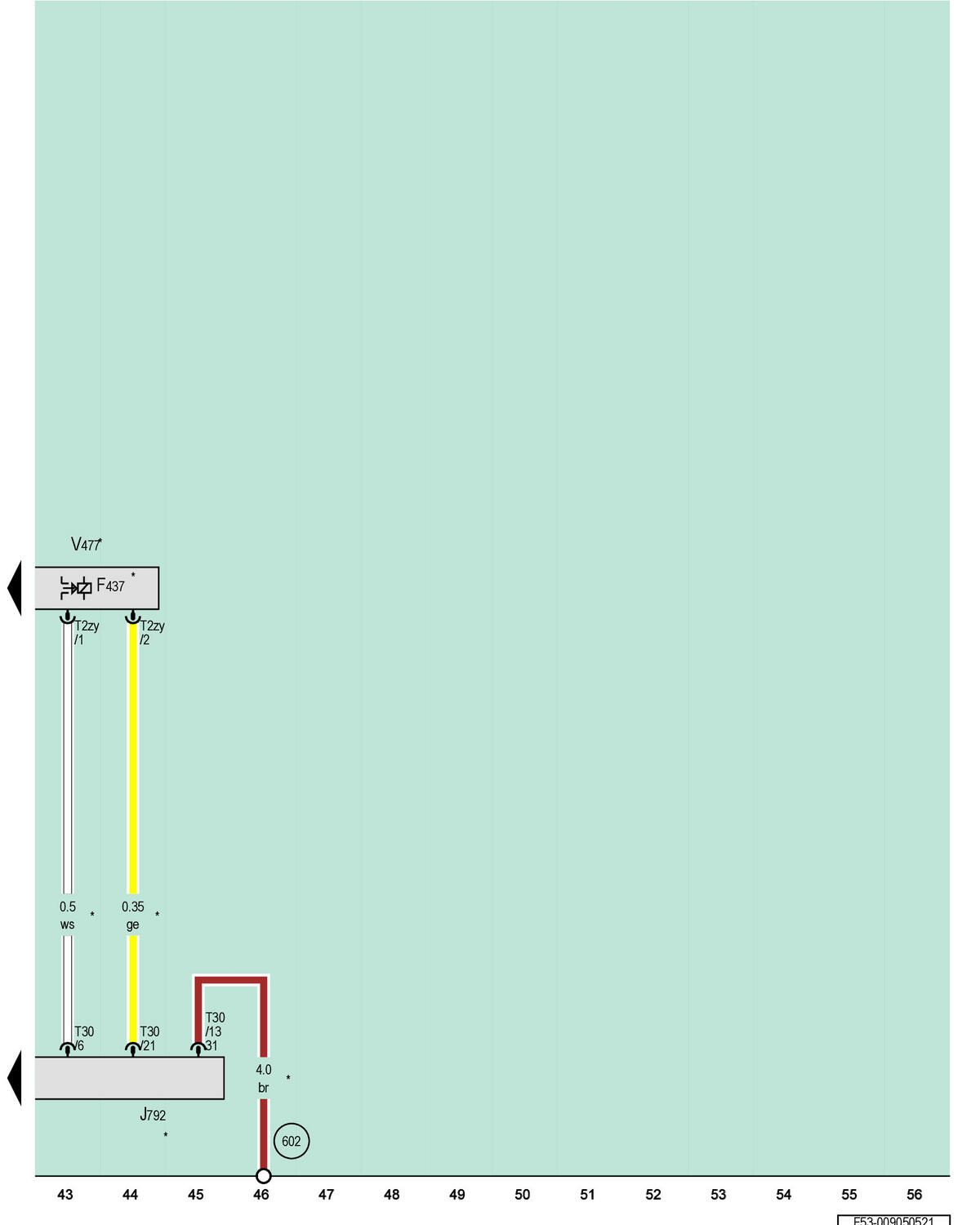

Active Steering Safety Lock Actuator, Active Steering Control Module, Active Steering Motor

Courtesy of AUDI OF AMERICA, LLC

F437

Active Steering Safety Lock Actuator

J792

Active Steering Control Module

T2zy

2-Pin Connector, Black

T30

30-Pin Connector, Black

V477

Active Steering Motor

602

Ground Connection in Left Front Footwell

*

For Vehicles with Speed-Dependent Power Steering
