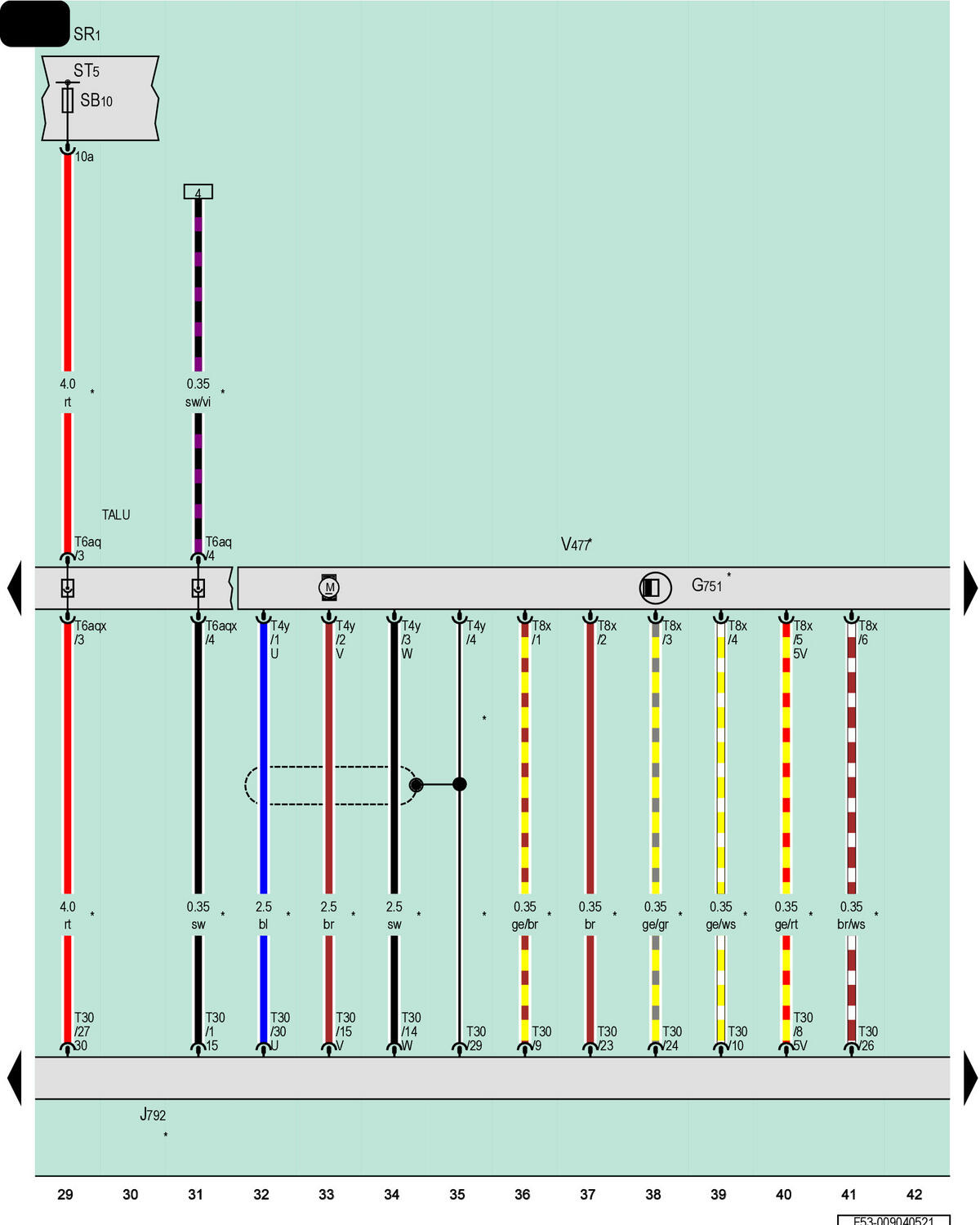

Active Steering Motor Rotor Position Sensor, Active Steering Control Module, Active Steering Motor

Courtesy of AUDI OF AMERICA, LLC

G751

Active Steering Motor Rotor Position Sensor

J792

Active Steering Control Module

SR1

Relay and Fuse Panel 1

ST5

Fuse Panel 5, Red

SB10

Fuse 10 (On Fuse Panel B)

T4y

4-Pin Connector, Black

T6aq

6-Pin Connector, Green

T6aqx

6-Pin Connector, Green

T8x

8-Pin Connector, Black

T30

30-Pin Connector, Black

TALU

Coupling Point on Left A-Pillar, Bottom

V477

Active Steering Motor

*

For Vehicles with Speed-Dependent Power Steering
