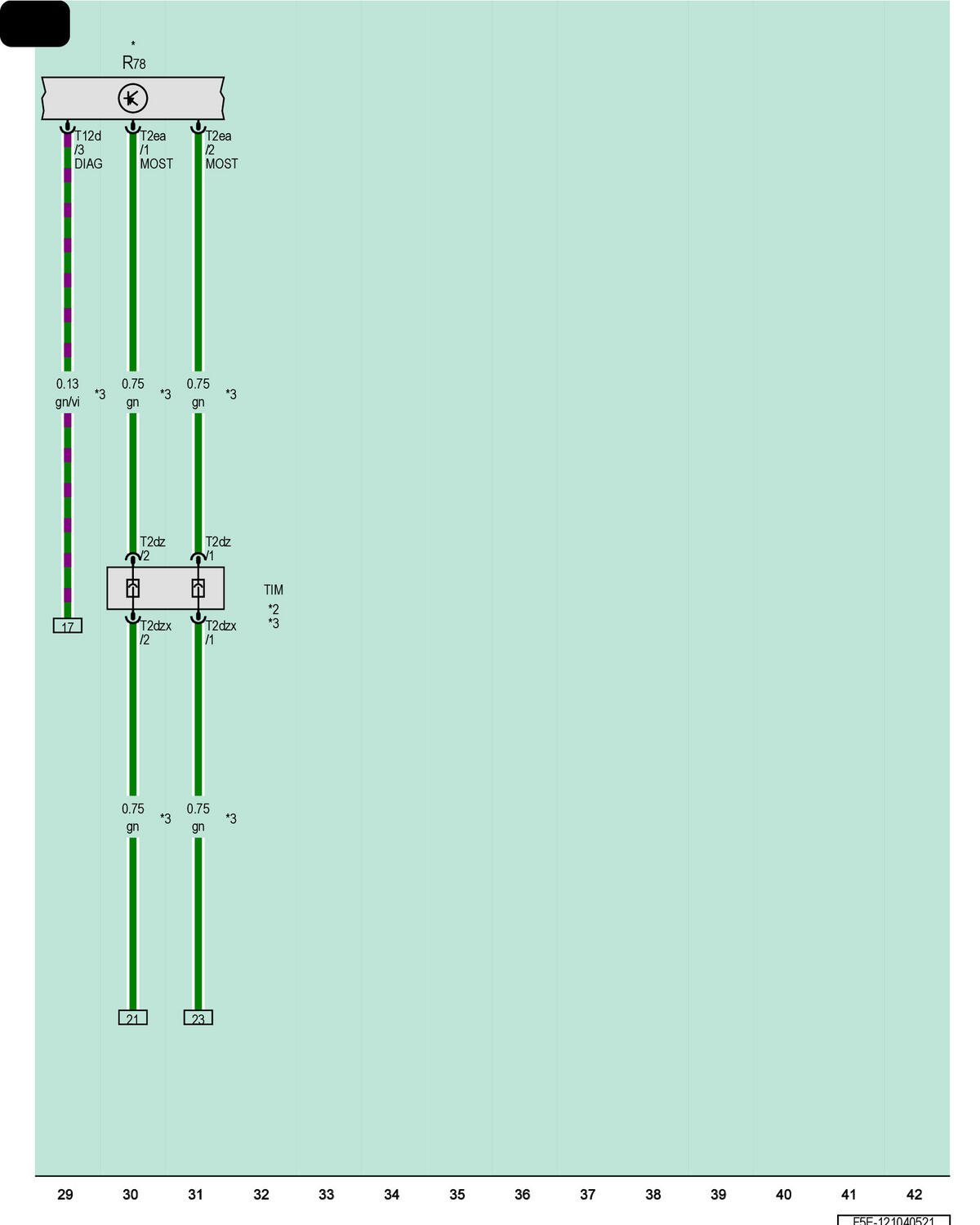

TV Tuner

Courtesy of AUDI OF AMERICA, LLC

R78

TV Tuner

T2dz

2-Pin Connector, Black

T2dzx

2-Pin Connector, Black

T2ea

2-Pin Connector, Black

T12d

12-Pin Connector, Black

TIM

Coupling Point in Interior, Center

*

Refer to the Applicable TV Tuner Wiring Diagram

*2

Refer to Applicable Wiring Diagram for Infotainment Most Bus

*3

For Vehicles with TV Tuner
