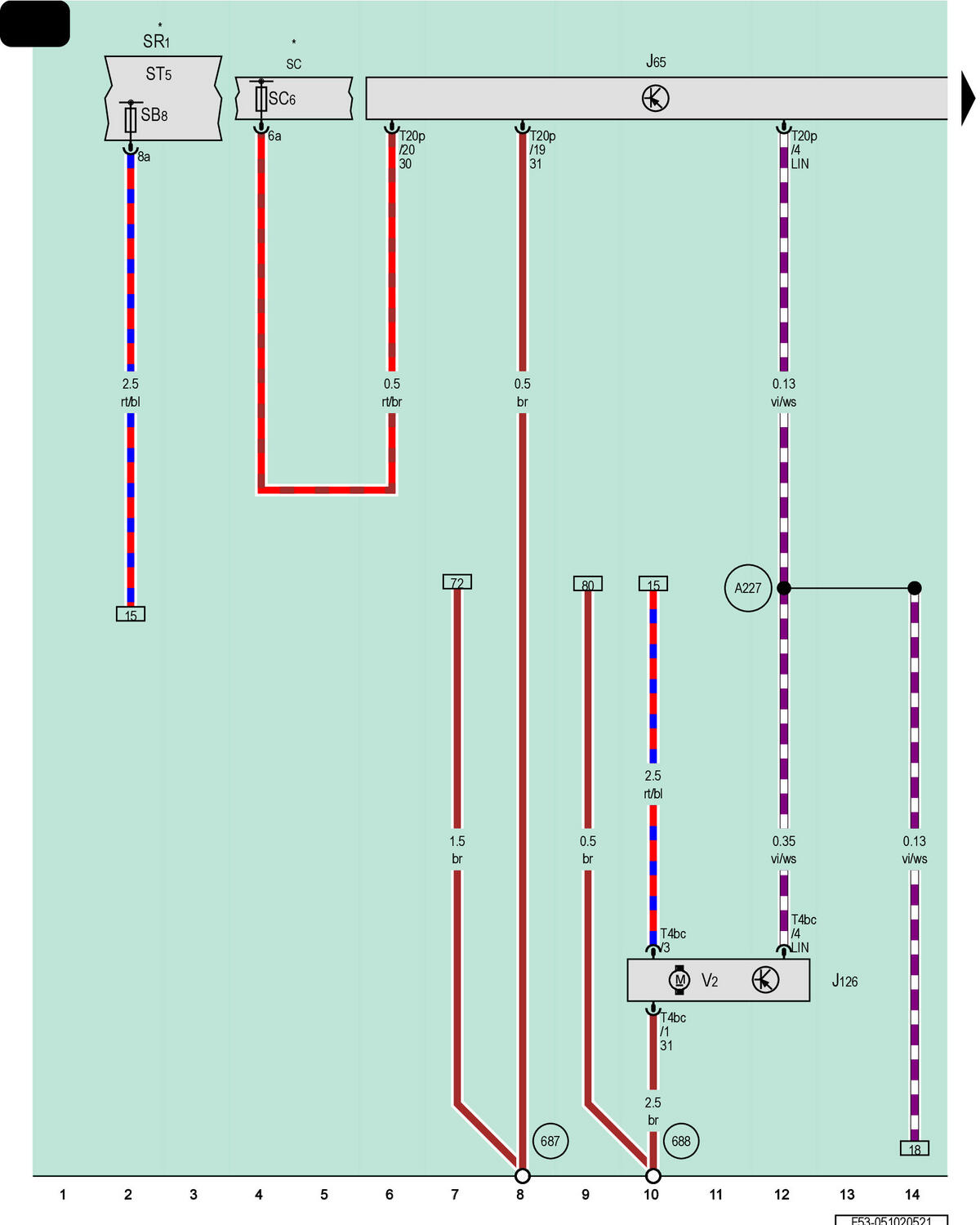

Heater Control Module, Fresh Air Blower Control Module, Fresh Air Blower

Courtesy of AUDI OF AMERICA, LLC

J65

Heater Control Module

J126

Fresh Air Blower Control Module

SR1

Relay and Fuse Panel 1

SB8

Fuse 8 (On Fuse Panel B)

SC

Fuse Panel C

ST5

Fuse Panel 5, Red

SC6

Fuse 6 (On Fuse Panel C)

T4bc

4-Pin Connector, Black

T20p

20-Pin Connector, Black

V2

Fresh Air Blower

687

Ground Connection 1 on Center Tunnel

688

Ground Connection 2 on Center Tunnel

A227

LIN Bus Connection 2 (in Instrument Panel Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuse Positions
