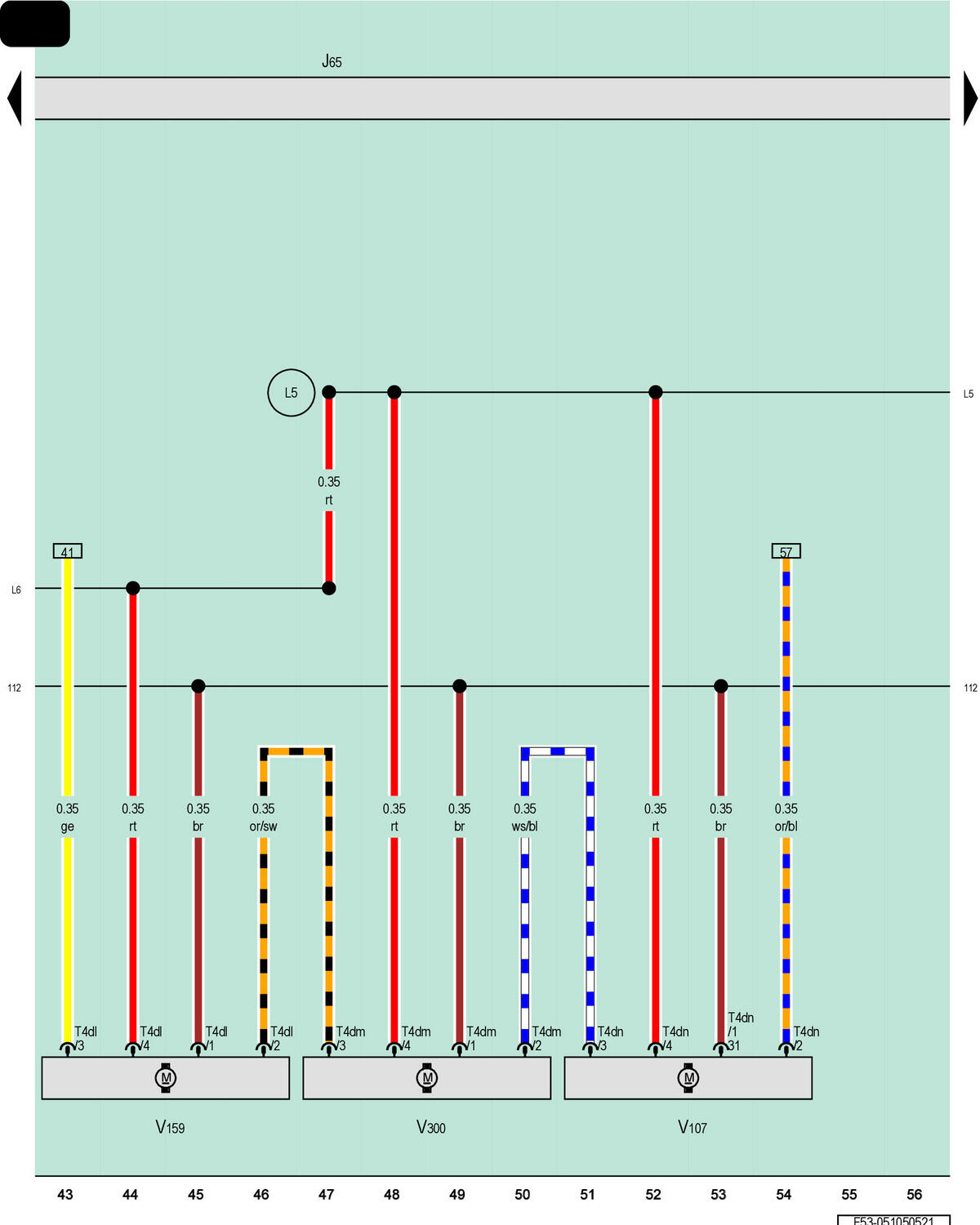

Heater Control Module, Defroster Door Motor, Right Temperature Control Door Motor, Right Side Vent Adjustment Motor

Courtesy of AUDI OF AMERICA, LLC

J65

Heater Control Module

T4dl

4-Pin Connector, Black

T4dm

4-Pin Connector, Black

T4dn

4-Pin Connector, Black

V107

Defroster Door Motor

V159

Right Temperature Control Door Motor

V300

Right Side Vent Adjustment Motor

112

Ground Connection 2 (in A/C Wiring Harness)

L5

Connection 1 (in A/C Unit Wiring Harness)

L6

Connection 2 (in A/C Unit Wiring Harness)
