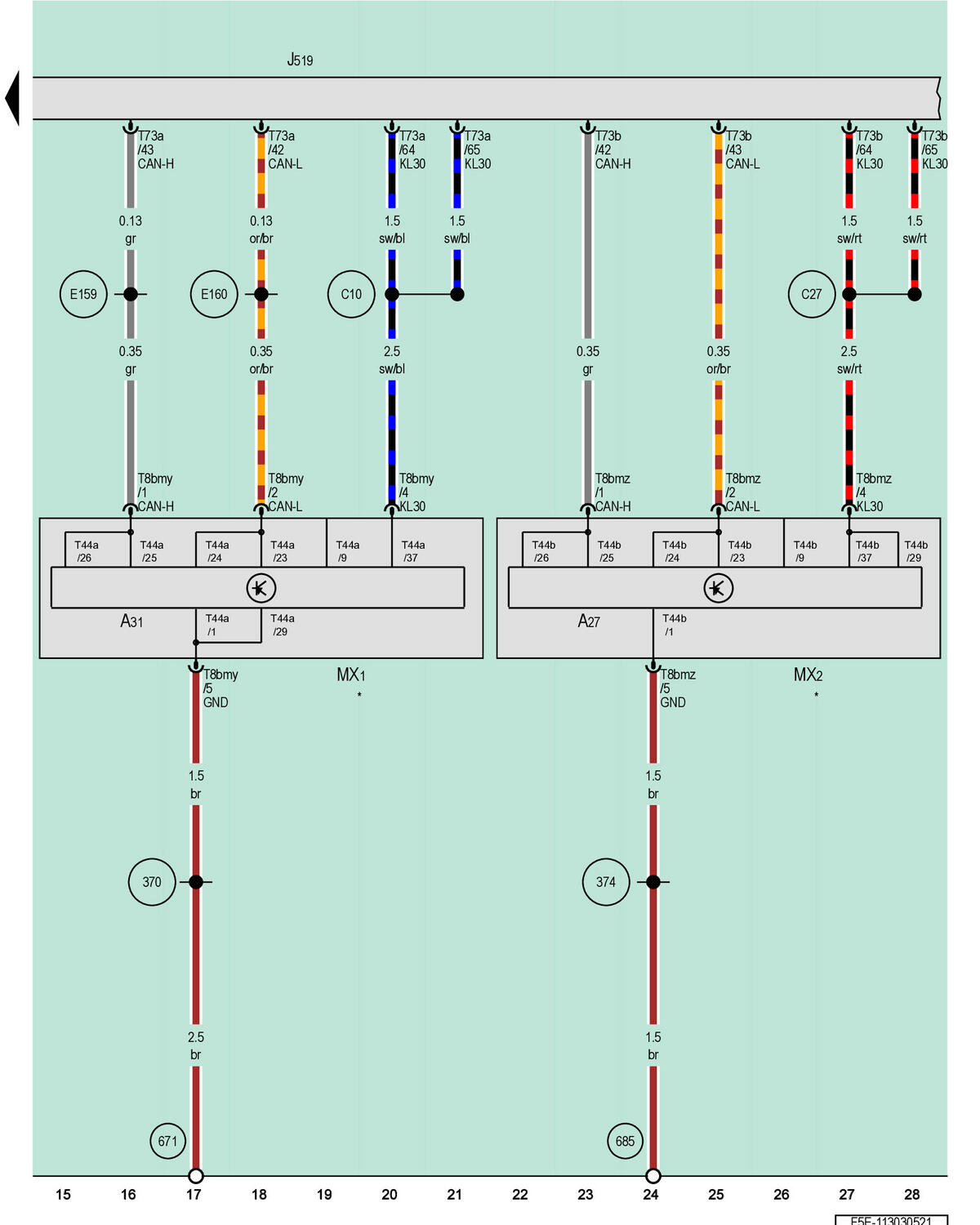

Vehicle Electrical System Control Module, Left Front Headlamp, Right Front Headlamp
A27
Right LED Headlamp Power Output Module 1
A31
Left LED Headlamp Power Output Module 1
J519
Vehicle Electrical System Control Module
MX1
Left Front Headlamp
MX2
Right Front Headlamp
T8bmy
8-Pin Connector, Black
T8bmz
8-Pin Connector, Black
T73a
73-Pin Connector, Black
T73b
73-Pin Connector, Black
370
Ground Connection 5 (in Main Wiring Harness)
374
Ground Connection 9 (in Main Wiring Harness)
671
Ground Connection 1 on Left Front Longitudinal Member
685
Ground Connection 1 on Right Front Longitudinal Member
C10
Positive Connection 1 (30) (in Headlamp Wiring Harness)
C27
Positive Connection 2 (30) (in Headlamp Wiring Harness)
E159
Connection 1 (CAN Bus, Vehicle Electrical System Control Module, High)
E160
Connection 1 (CAN Bus, Vehicle Electrical System Control Module, Low)
*
Internal Wiring only Partially Shown
