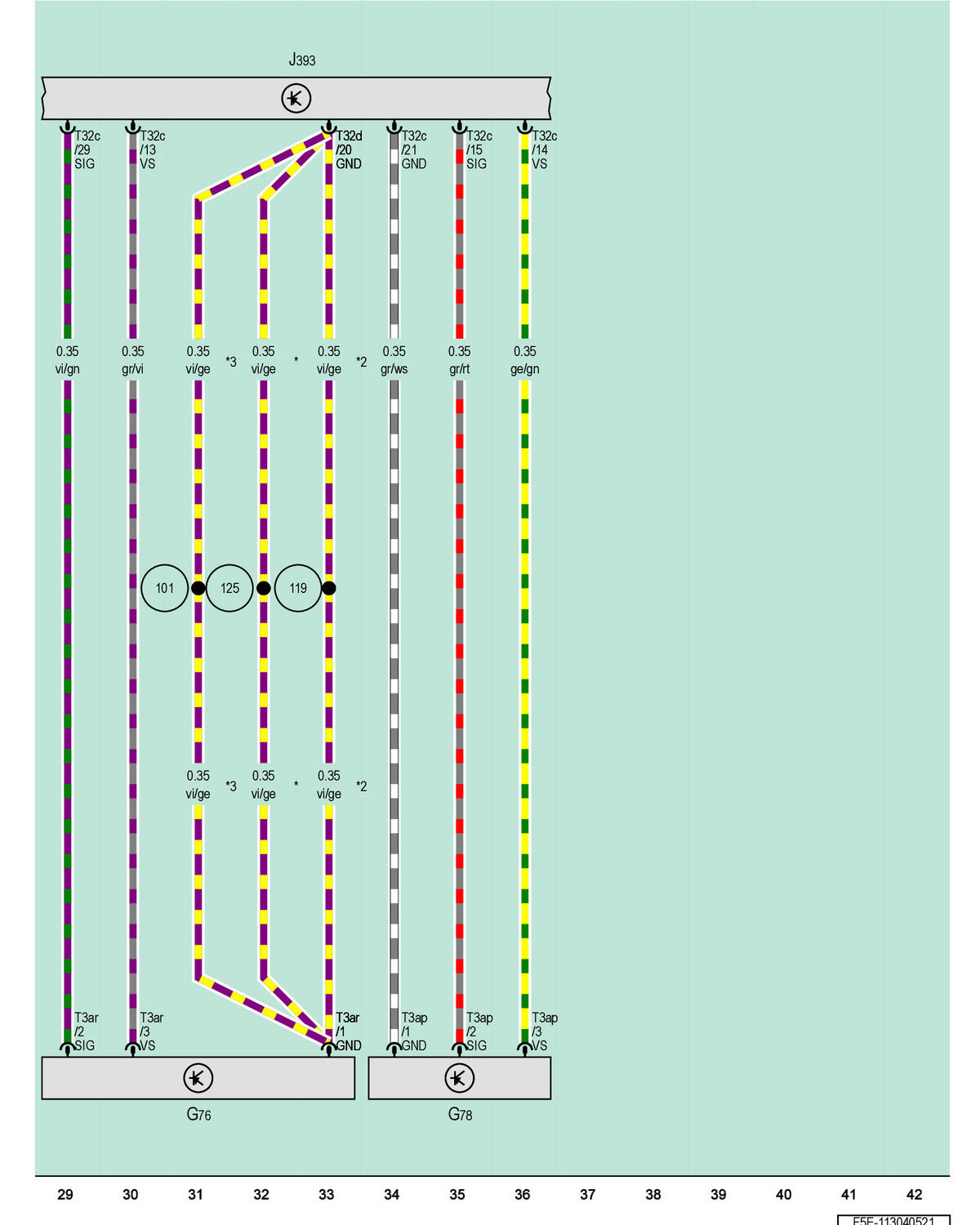

Left Rear Level Control System Sensor, Left Front Level Control System Sensor, Comfort System Central Control Module

Courtesy of AUDI OF AMERICA, LLC

G76

Left Rear Level Control System Sensor

G78

Left Front Level Control System Sensor

J393

Comfort System Central Control Module

T3ap

3-Pin Connector, Black

T3ar

3-Pin Connector, Black

T32c

32-Pin Connector, Black

T32d

32-Pin Connector, Blue

101

Ground Connection (in Headlamp Range Control Wiring Harness)

119

Ground Connection 1 (in Headlamp Wiring Harness)

125

Ground Connection 3 (in Headlamp Wiring Harness)

*

Coupe

*2

Sportback

*3

For Convertible
