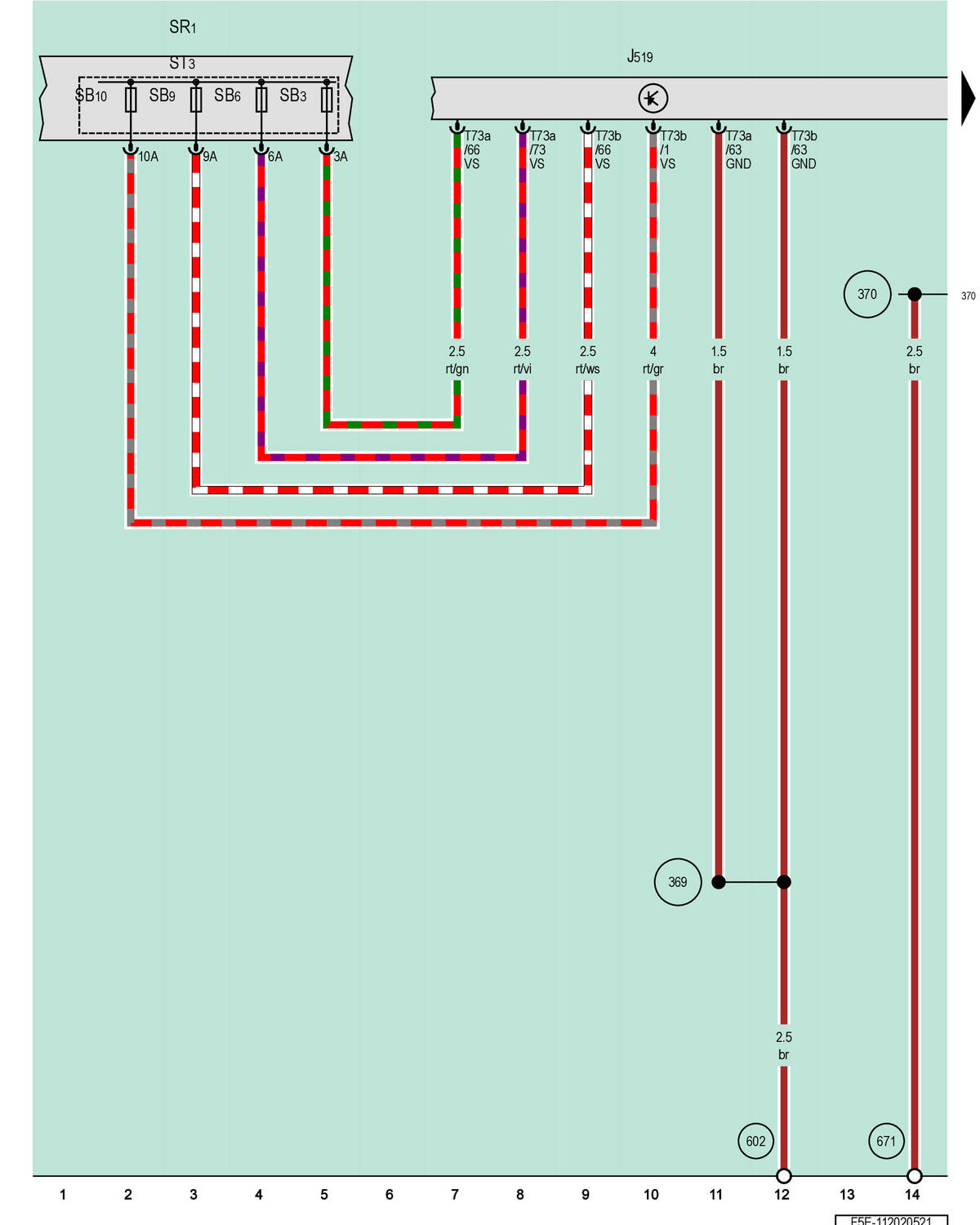

Vehicle Electrical System Control Module, Relay And Fuse Panel 1
J519
Vehicle Electrical System Control Module
SR1
Relay and Fuse Panel 1
SB3
Fuse 3 (On Fuse Panel B)
ST3
Fuse Panel 3, Red
SB6
Fuse 6 (On Fuse Panel B)
SB9
Fuse 9 (On Fuse Panel B)
SB10
Fuse 10 (On Fuse Panel B)
T73a
73-Pin Connector, Black
T73b
73-Pin Connector, Black
369
Ground Connection 4 (in Main Wiring Harness)
370
Ground Connection 5 (in Main Wiring Harness)
602
Ground Connection in Left Front Footwell
671
Ground Connection 1 on Left Front Longitudinal Member
