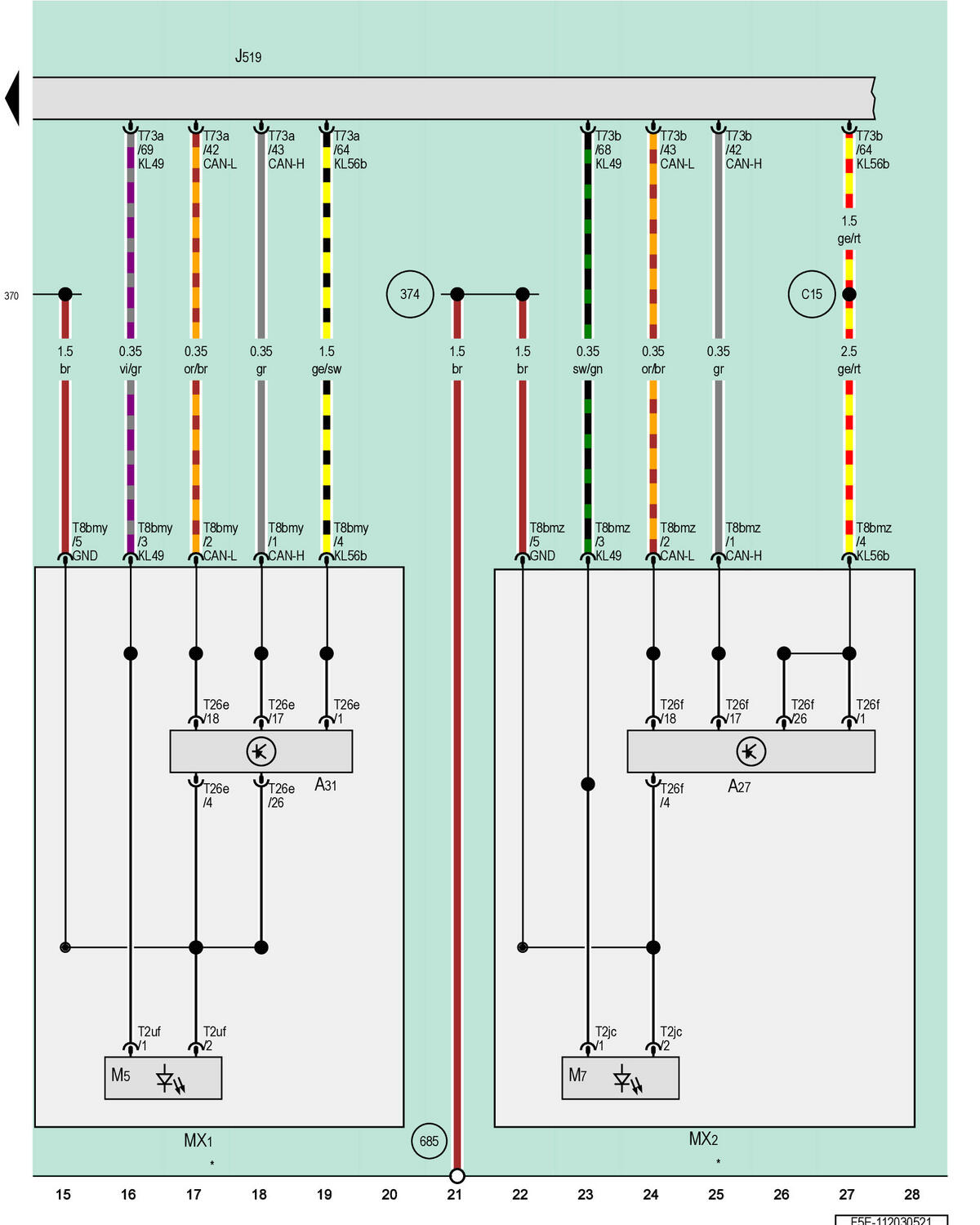

Right Led Headlamp Power Output Module 1, Left Led Headlamp Power Output Module 1, Vehicle Electrical System Control Module, Left Front Headlamp, Left Front Turn Signal Bulb, Right Front Turn Signal Bulb

Courtesy of AUDI OF AMERICA, LLC

A27

Right LED Headlamp Power Output Module 1

A31

Left LED Headlamp Power Output Module 1

J519

Vehicle Electrical System Control Module

MX1

Left Front Headlamp

MX2

Right Front Headlamp

Left Front Turn Signal Bulb

Right Front Turn Signal Bulb

T2jc

2-Pin Connector

T2uf

2-Pin Connector

T8bmy

8-Pin Connector, Black

T8bmz

8-Pin Connector, Black

T26e

26-Pin Connector

T26f

26-Pin Connector

T73a

73-Pin Connector, Black

T73b

73-Pin Connector, Black

370

Ground Connection 5 (in Main Wiring Harness)

374

Ground Connection 9 (in Main Wiring Harness)

685

Ground Connection 1 on Right Front Longitudinal Member

C15

Connection 1 (in Headlamp Wiring Harness)

Internal Wiring only Partially Shown
