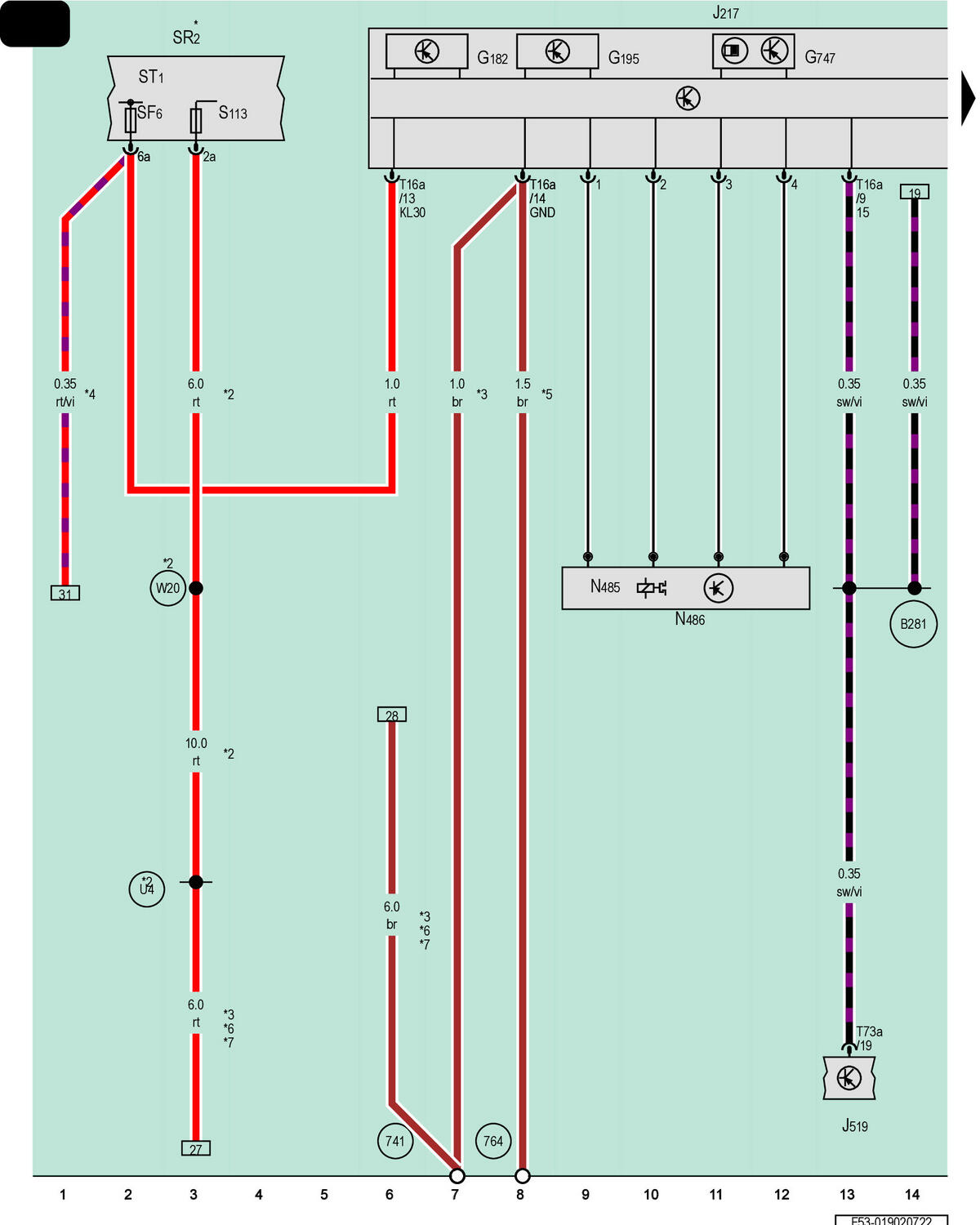

Transmission Input Speed Sensor, Transmission Output Speed Sensor, Parking Lock Sensor, Transmission Control Module, Parking Lock Solenoid
G182
Transmission Input Speed Sensor
G195
Transmission Output Speed Sensor
G747
Parking Lock Sensor
J217
Transmission Control Module
J519
Vehicle Electrical System Control Module
N485
Accumulator Solenoid
N486
Parking Lock Solenoid
ST1
Fuse Panel 1, Black
SR2
Relay and Fuse Panel 2
SF6
Fuse 6 (On Fuse Panel F)
S113
Automatic Transmission Control Module Fuse
T16a
16-Pin Connector, Black
T73a
73-Pin Connector, Black
741
Ground Connection Under Left Front Seat
764
Ground Connection Inside Left Front Wheel Housing
B281
Positive Connection 5 (15a) (in Main Wiring Harness)
U4
Connection 30 (in Automatic Transmission Wiring Harness)
W20
Positive Connection (30a) (in Rear Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
*2
Depending on Equipment
*3
For Vehicles with Diesel Engine
*4
For Natural Gas Vehicles
*5
For Vehicles with Gasoline Engine
*6
For Vehicles with a 3.0L Engine
*7
For Vehicles with 48 V System
