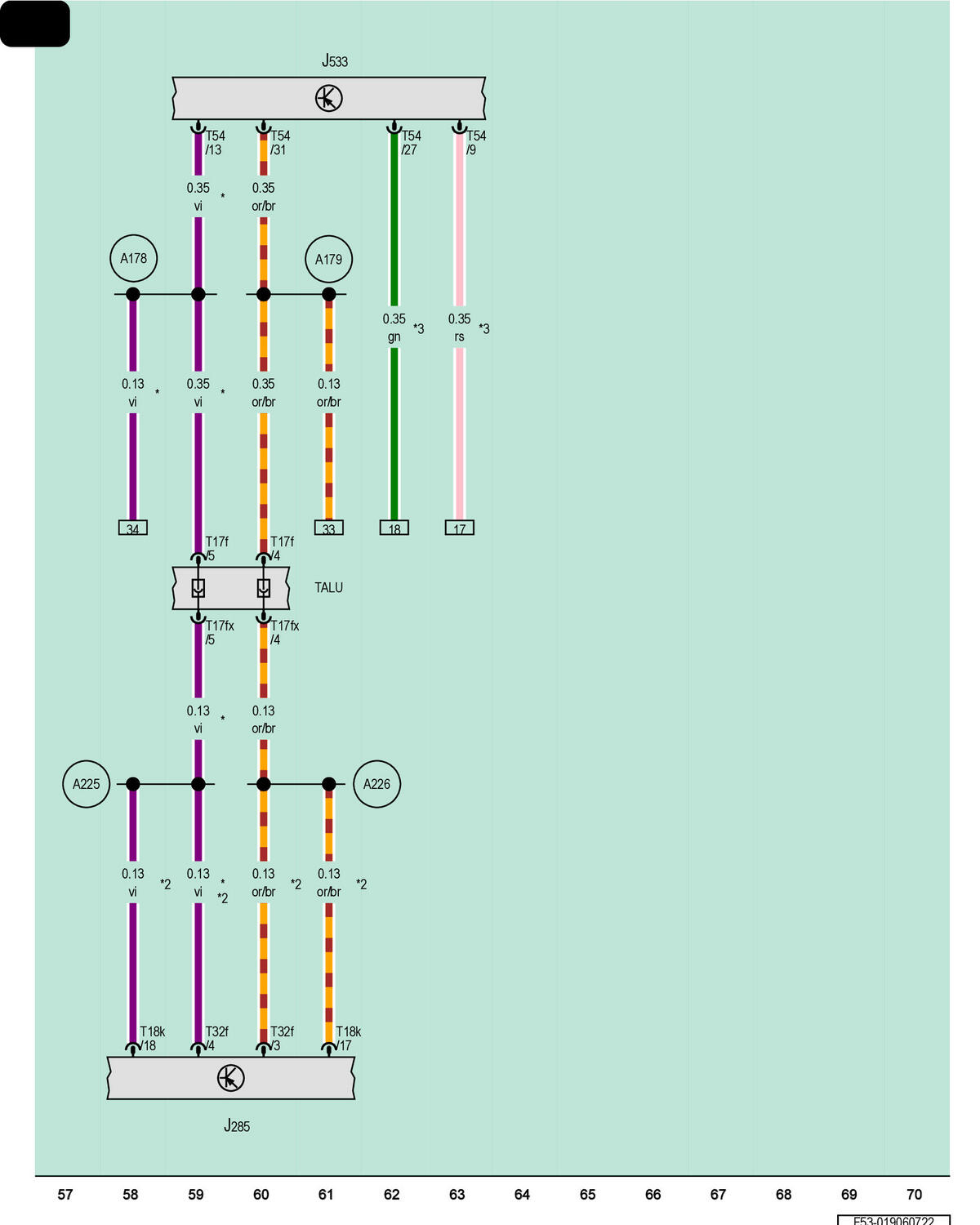

Instrument Control Control Module
J285
Instrument Cluster Control Module
J533
Data Bus on Board Diagnostic Interface
T17f
17-Pin Connector, Red
T17fx
17-Pin Connector, Red
T18k
18-Pin Connector, Black
T32f
32-Pin Connector, Gray
T54
54-Pin Connector, Black
TALU
Coupling Point on Left A-Pillar, Bottom
A178
Infotainment CAN Bus High Connection (in Instrument Panel Wiring Harness)
A179
Infotainment CAN Bus Low Connection (in Instrument Panel Wiring Harness)
A225
Infotainment CAN Bus High Connection 2 (in Instrument Panel Wiring Harness)
A226
Infotainment CAN Bus Low Connection 2 (in Instrument Panel Wiring Harness)
*
Different Wire Color Possible
*2
Depending on Equipment
*3
Data Bus Wire (Flexray Bus)
