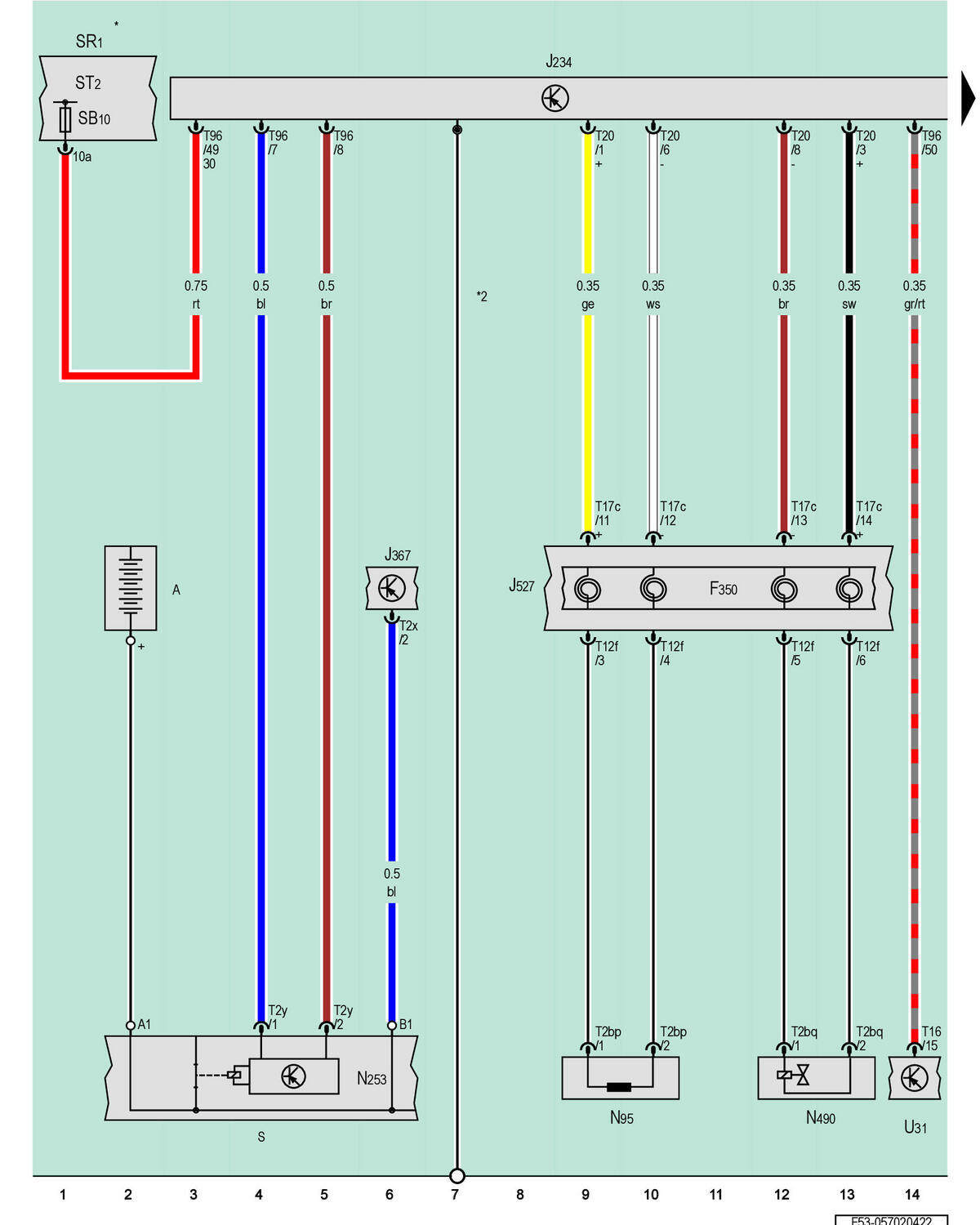

Spiral Spring, Airbag Control Module, Driver Airbag Igniter, Driver Airbag Release Valve Igniter, Fuses (On Fuse Panel)
A
Battery
F350
Spiral Spring
J234
Airbag Control Module
J367
Battery Monitoring Control Module
J527
Steering Column Electronics Control Module
N95
Driver Airbag Igniter
N253
Battery Interrupt Igniter
N490
Driver Airbag Release Valve Igniter
S
Fuses (On Fuse Panel), On the Battery Fuse Panel
SR1
Relay and Fuse Panel 1
ST2
Fuse Panel 2, Red
SB10
Fuse 10 (On Fuse Panel B)
T2bp
2-Pin Connector, Yellow
T2bq
2-Pin Connector, Yellow
T2x
2-Pin Connector, Black
T2y
2-Pin Connector, Yellow
T12f
12-Pin Connector, Black
T16
16-Pin Connector, Black
T17c
17-Pin Connector, Yellow
T20
20-Pin Connector, Yellow
T96
96-Pin Connector, Yellow
U31
Diagnostic Connection
*
Refer to Applicable Wiring Diagram for Fuse Positions
*2
Ground Supply via the Housing
