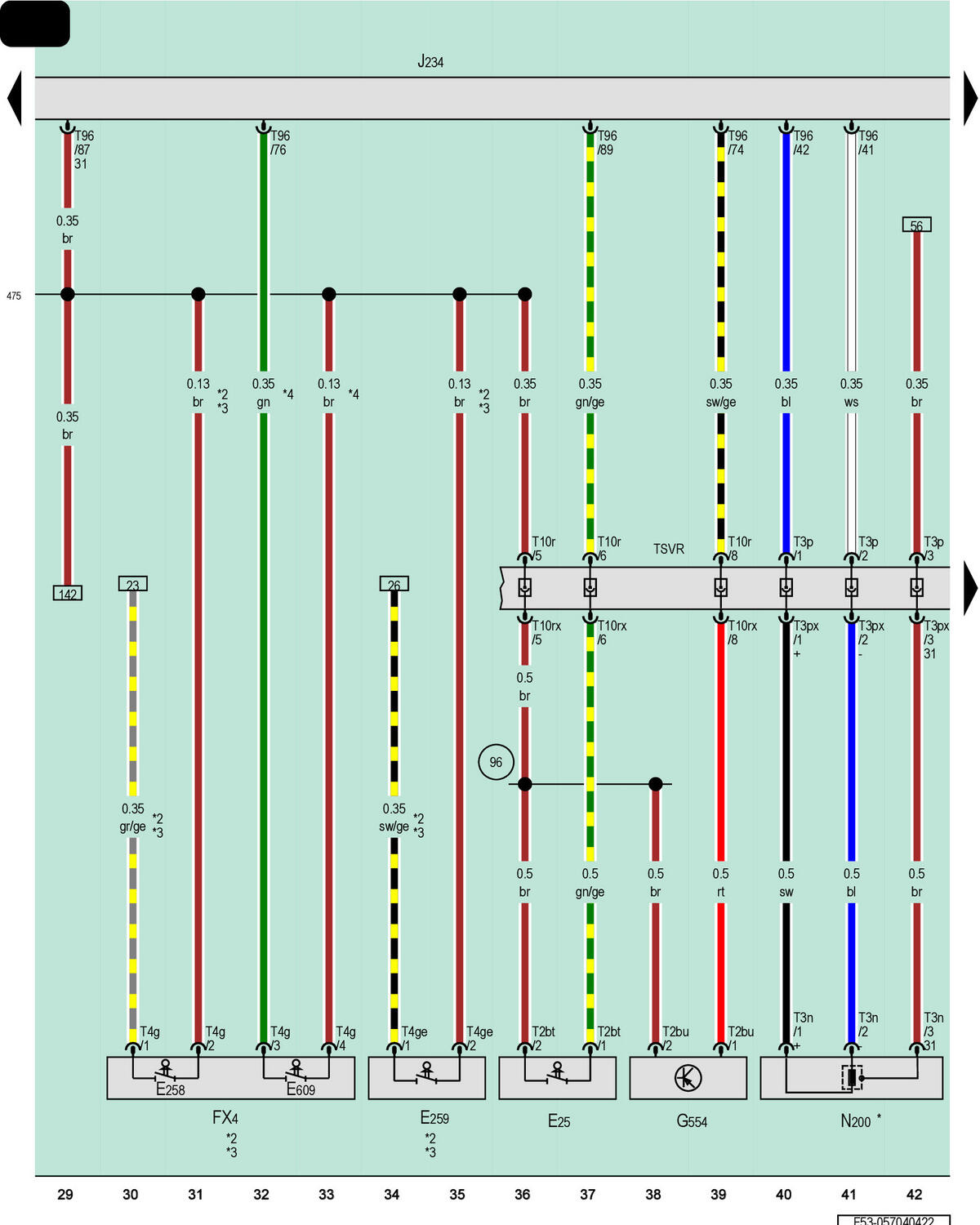

Front Passenger Seat Belt Switch, Passenger Side Rear Seat Belt Switch, Dual Seat Belt Latch, Front Passenger Seat Position Sensor, Airbag Control Module, Front Passenger Thorax Airbag Igniter
E25
Front Passenger Seat Belt Switch
E258
Driver Side Rear Seat Belt Switch
E259
Passenger Side Rear Seat Belt Switch
E609
Center Rear Seat Belt Switch
FX4
Dual Seat Belt Latch
G554
Front Passenger Seat Position Sensor
J234
Airbag Control Module
N200
Front Passenger Thorax Airbag Igniter
T2bt
2-Pin Connector, Black
T2bu
2-Pin Connector, Black
T3n
3-Pin Connector, Yellow
T3p
3-Pin Connector, Yellow
T3px
3-Pin Connector, Yellow
T4g
4-Pin Connector, Black
T4ge
4-Pin Connector, Black
T10r
10-Pin Connector, Black
T10rx
10-Pin Connector, Black
T96
96-Pin Connector, Yellow
TSVR
Right Front Seat Coupling Station
96
Ground Connection 1 (in Heated Seats Wiring Harness)
475
Airbag Ground Connection (in Main Wiring Harness)
*
Pre-Wired Component
*2
Coupe
*3
Sportback
*4
Depending on Equipment
