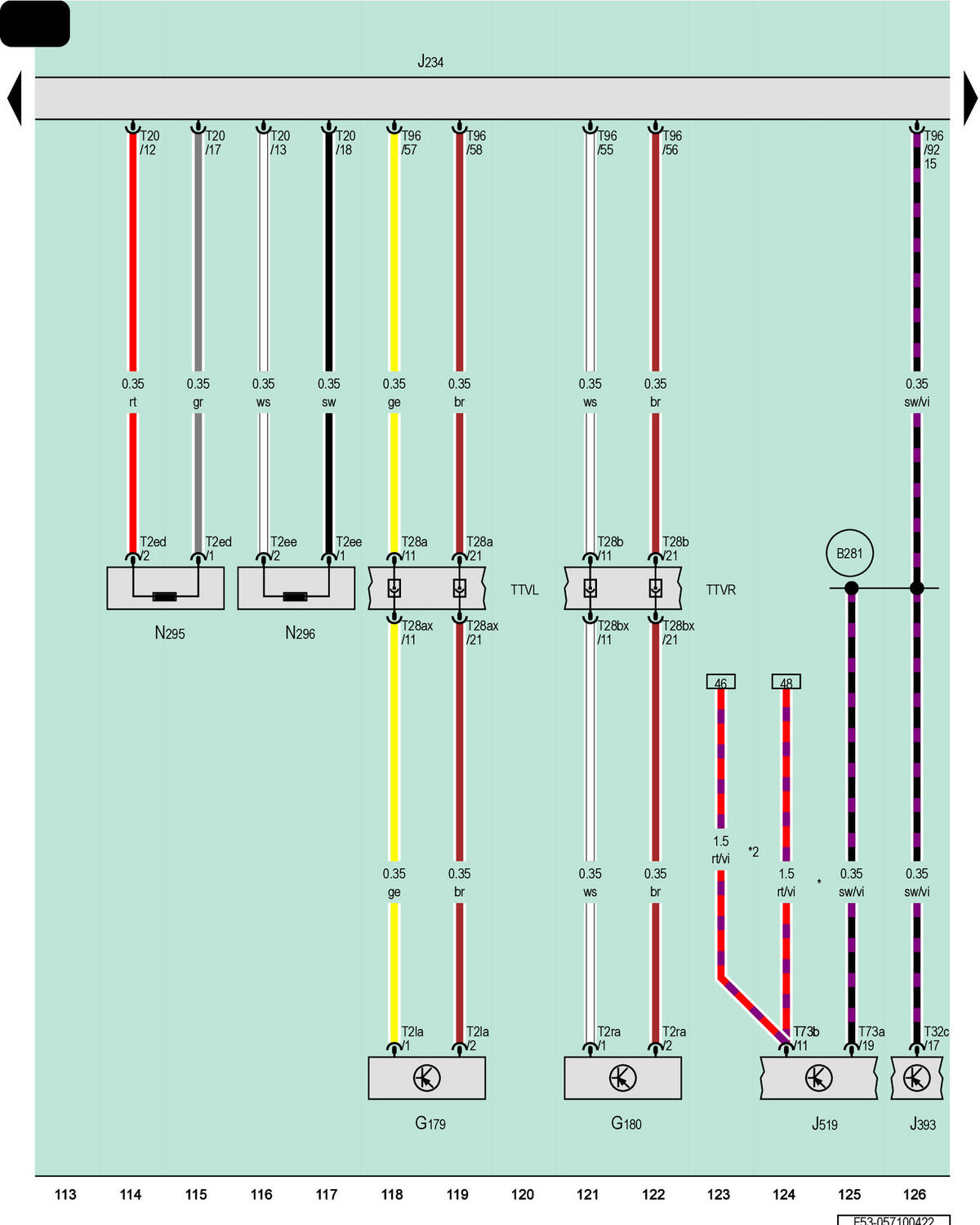

Driver Thorax Airbag Crash Sensor, Front Passenger Thorax Airbag Crash Sensor, Airbag Control Module, Driver Knee Airbag Igniter, Front Passenger Knee Airbag Igniter

Courtesy of AUDI OF AMERICA, LLC

G179

Driver Thorax Airbag Crash Sensor

G180

Front Passenger Thorax Airbag Crash Sensor

J234

Airbag Control Module

J393

Comfort System Central Control Module

J519

Vehicle Electrical System Control Module

N295

Driver Knee Airbag Igniter

N296

Front Passenger Knee Airbag Igniter

T2ed

2-Pin Connector, Yellow

T2ee

2-Pin Connector, Yellow

T2la

2-Pin Connector, Black

T2ra

2-Pin Connector, Black

T20

20-Pin Connector, Yellow

T28a

28-Pin Connector, Black

T28ax

28-Pin Connector, Black

T28b

28-Pin Connector, Black

T28bx

28-Pin Connector, Black

T32c

32-Pin Connector, Black

T73a

73-Pin Connector, Black

T73b

73-Pin Connector, Black

T96

96-Pin Connector, Yellow

TTVL

Left Front Door Coupling Point

TTVR

Right Front Door Coupling Point

B281

Positive Connection 5 (15a) (in Main Wiring Harness)

Omitted as a Running Change

Running Change
