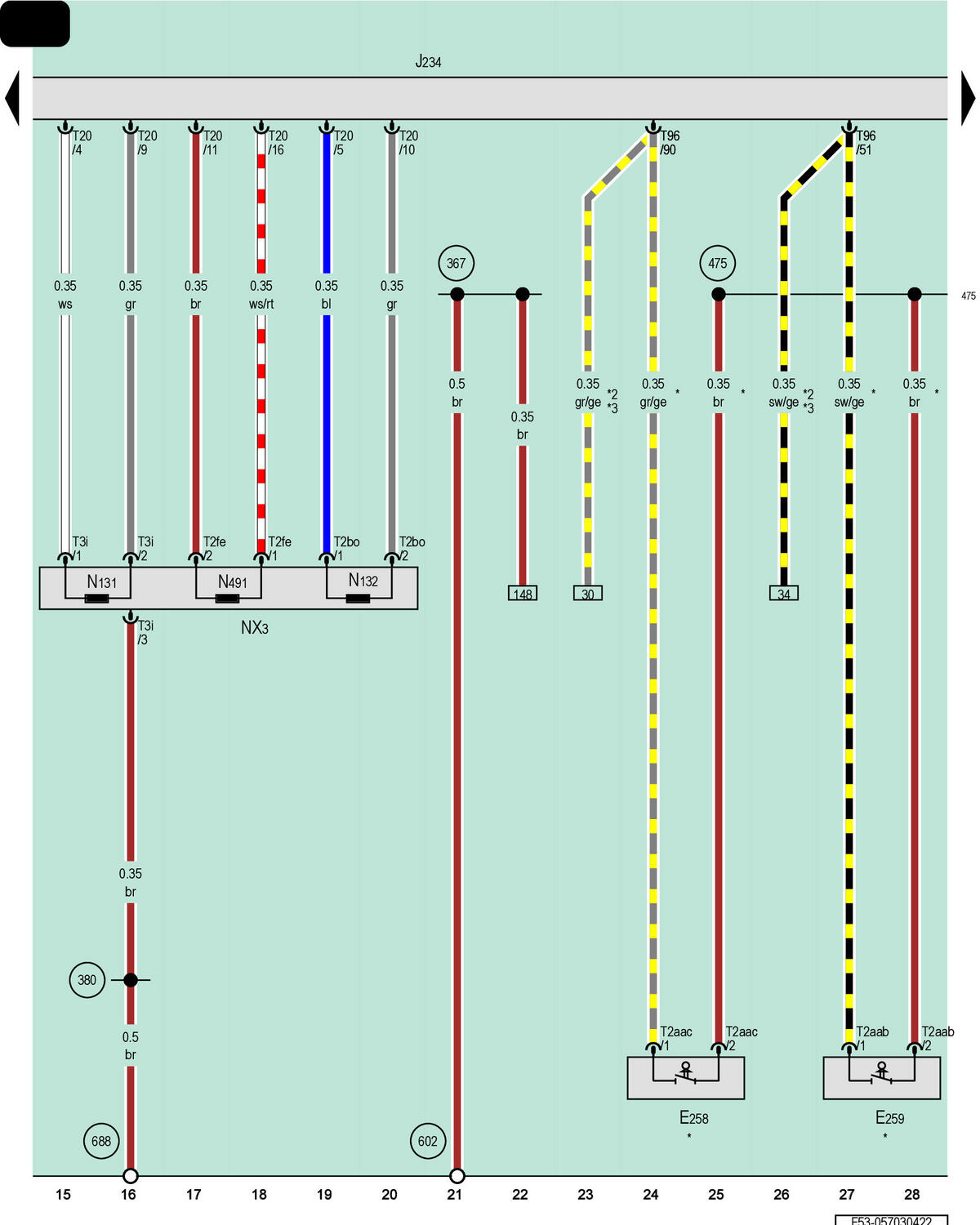

Driver Side Rear Seat Belt Switch, Passenger Side Rear Seat Belt Switch, Airbag Control Module, Front Passenger Airbag Unit

Courtesy of AUDI OF AMERICA, LLC

E258

Driver Side Rear Seat Belt Switch

E259

Passenger Side Rear Seat Belt Switch

J234

Airbag Control Module

NX3

Front Passenger Airbag Unit

N131

Front Passenger Airbag Igniter 1

N132

Front Passenger Airbag Igniter 2

N491

Front Passenger Airbag Release Valve Igniter

T2aab

2-Pin Connector, Blue

T2aac

2-Pin Connector, Black

T2bo

2-Pin Connector, Yellow

T2fe

2-Pin Connector, Yellow

T3i

3-Pin Connector, Yellow

T20

20-Pin Connector, Yellow

T96

96-Pin Connector, Yellow

367

Ground Connection 2 (in Main Wiring Harness)

380

Ground Connection 15 (in Main Wiring Harness)

475

Airbag Ground Connection (in Main Wiring Harness)

602

Ground Connection in Left Front Footwell

688

Ground Connection 2 on Center Tunnel

For Convertible

Coupe

Sportback
