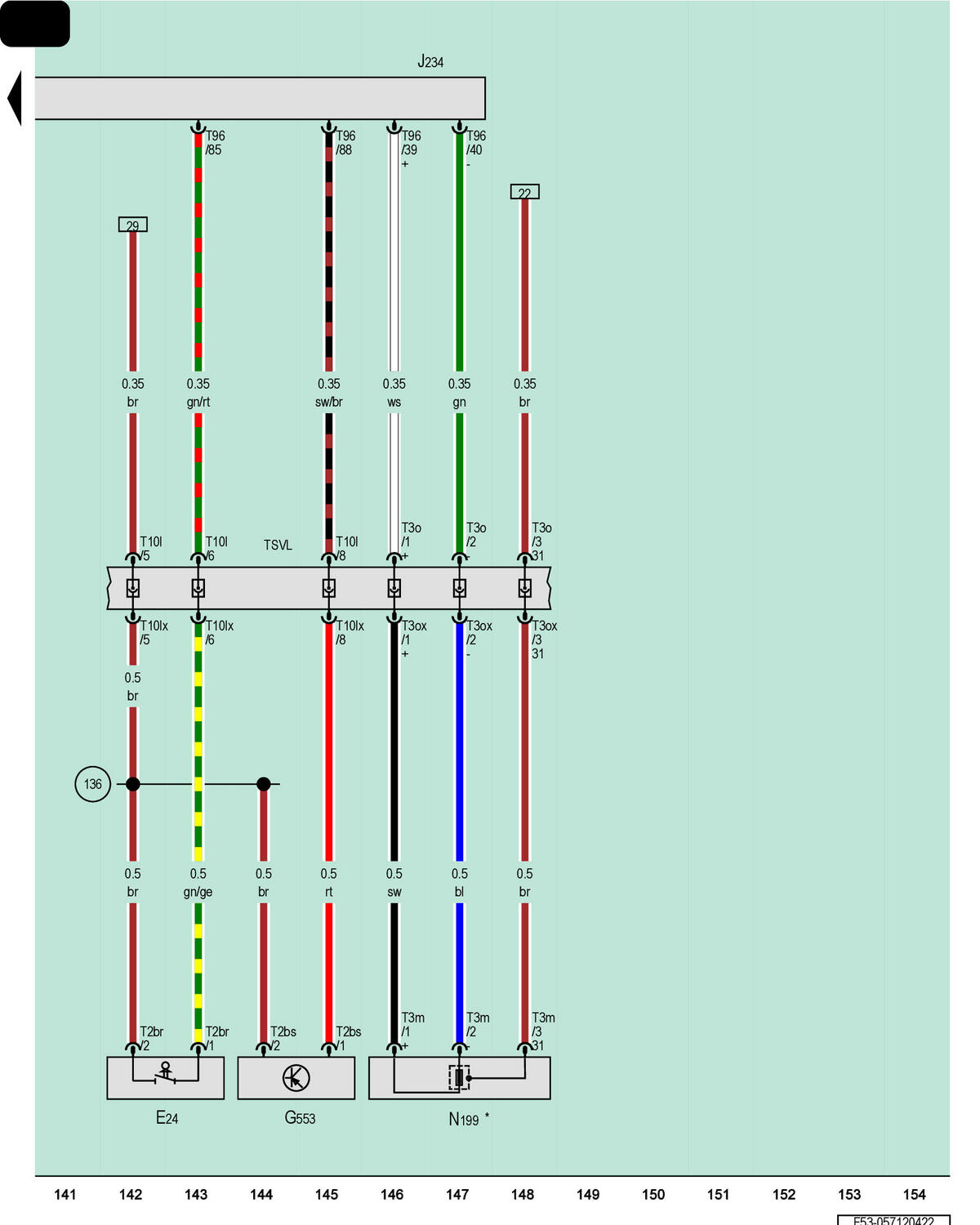

Driver Seat Belt Switch, Driver Seat Position Sensor, Airbag Control Module, Driver Thorax Airbag Igniter
E24
Driver Seat Belt Switch
G553
Driver Seat Position Sensor
J234
Airbag Control Module
N199
Driver Thorax Airbag Igniter
T2br
2-Pin Connector, Black
T2bs
2-Pin Connector, Black
T3m
3-Pin Connector, Yellow
T3o
3-Pin Connector, Yellow
T3ox
3-Pin Connector, Yellow
T10l
10-Pin Connector, Black
T10lx
10-Pin Connector, Black
T96
96-Pin Connector, Yellow
TSVL
Left Front Seat Coupling Station
136
Ground Connection 2 (in Heated Seats Wiring Harness)
*
Pre-Wired Component
