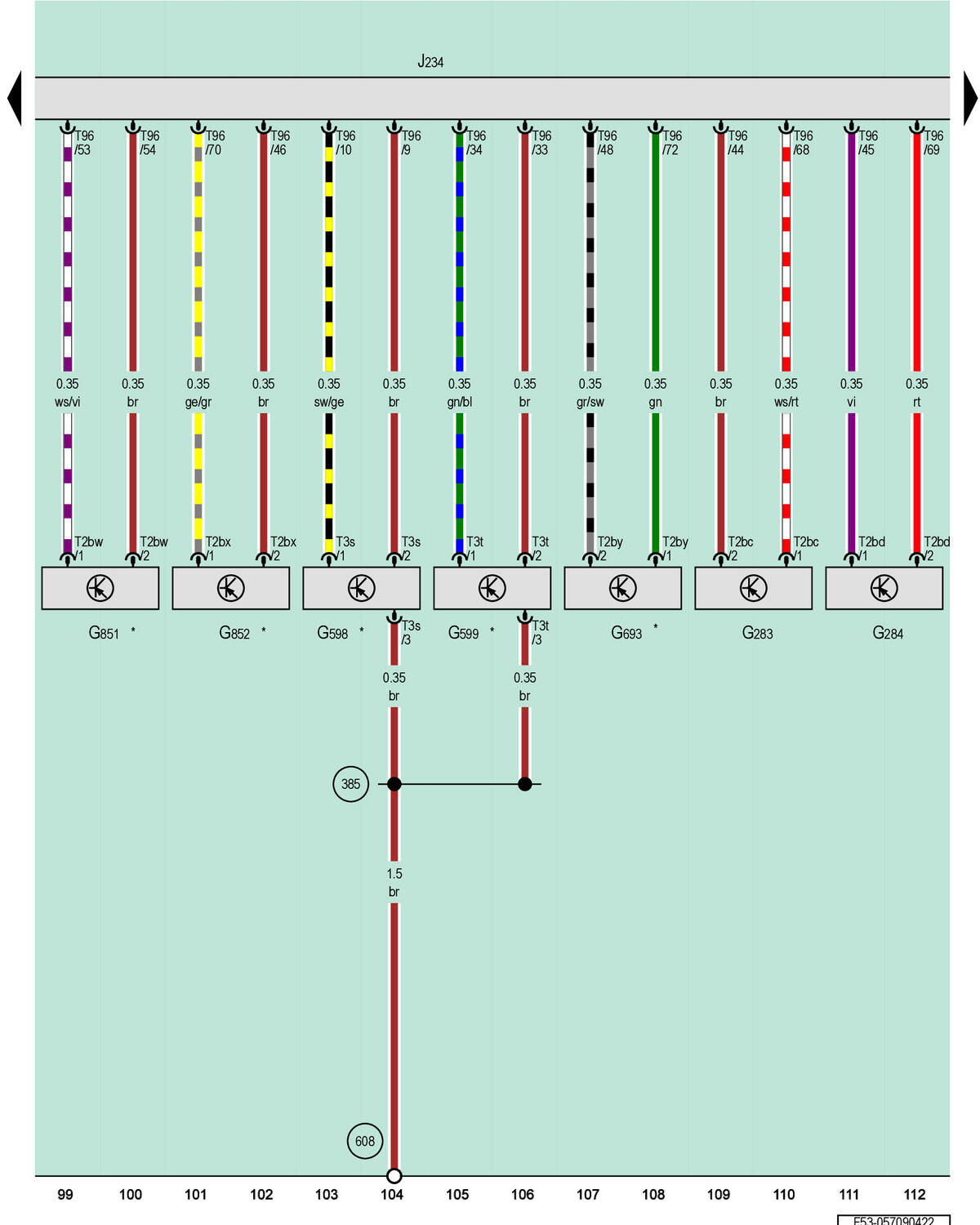

Driver Front Airbag Crash Sensor, Passenger Side Front Airbag Crash Sensor, Pedestrian Protection Trigger 1, Pedestrian Protection Trigger 2, Pedestrian Protection Center Crash Sensor, Driver Side Pedestrian Protection Crash Sensor 2, Front Passenger Side Pedestrian Protection Crash Sensor 2, Airbag Control Module
G283
Driver Front Airbag Crash Sensor
G284
Passenger Side Front Airbag Crash Sensor
G598
Pedestrian Protection Trigger 1
G599
Pedestrian Protection Trigger 2
G693
Pedestrian Protection Center Crash Sensor
G851
Driver Side Pedestrian Protection Crash Sensor 2
G852
Front Passenger Side Pedestrian Protection Crash Sensor 2
J234
Airbag Control Module
T2bc
2-Pin Connector, Yellow
T2bd
2-Pin Connector, Yellow
T2bw
2-Pin Connector, Yellow
T2bx
2-Pin Connector, Yellow
T2by
2-Pin Connector, Yellow
T3s
3-Pin Connector, Yellow
T3t
3-Pin Connector, Yellow
T96
96-Pin Connector, Yellow
385
Ground Connection 20 (in Main Wiring Harness)
608
Ground Connection in Plenum Chamber, Center
*
For Vehicles with Pedestrian Protection System
